Plastic injection molding is a transformative manufacturing process that injects molten plastic into precisely designed molds. This technique has revolutionized the production of everyday items, from simple bottles to complex automotive parts. As industries seek efficient, cost-effective solutions, plastic injection molding stands out for its ability to produce high-quality components quickly and precisely.
Originating in the mid-19th century, this method has evolved with advanced technologies and sustainable practices, addressing environmental concerns. In this article, we’ll explore the principles of plastic injection molding, its processes, and the innovations shaping its future, underscoring its importance Save in modern manufacturing.
Injection Molding Machine: Producer Of Plastic Molds
Plastic injection molding is a manufacturing process used to create parts by injecting molten plastic into a mold. This method is particularly favored for producing large quantities of identical items quickly and efficiently. Whether it’s the casing for a smartphone or components for medical devices, plastic injection molding is integral to modern manufacturing.

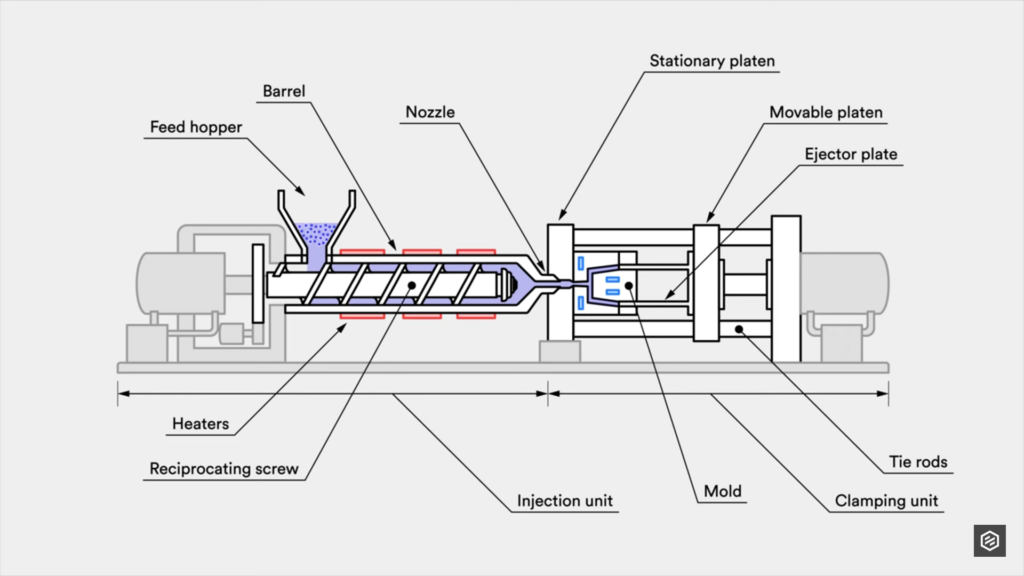

Injection Molding Machine: The machinery used to heat and inject the plastic into the mold. It consists of several components as listed below.
Barrel: The part of the machine where plastic pellets are heated until they melt. It includes a screw that mixes and transports the molten plastic to the injection unit.
Mold: A hollow container that shapes the molten plastic into the desired form. Molds are custom-designed for each product and can be made from various materials, including steel or aluminum.
Feed Hopper: A container at the top of the injection molding machine that holds and feeds plastic pellets into the barrel for melting.
Nozzle: The part of the injection unit that directs molten plastic from the barrel into the mold cavity, ensuring a smooth and controlled flow.
Heaters: Devices surrounding the barrel that maintain the necessary temperature to melt the plastic pellets, allowing them to flow easily for injection.
Reciprocating Screw: A screw mechanism within the barrel that both mixes and transports the melted plastic forward, injecting it into the mold when ready.
Injection Unit: The component of the injection molding machine responsible for melting the plastic and injecting it into the mold; it includes the barrel, screw, and nozzle.
Stationary Platen: The fixed plate of the injection molding machine where the mold is mounted; it provides support during the injection process.
Movable Platen: The plate that moves to open and close the mold, allowing for the injection of molten plastic and the ejection of finished parts.
Ejector Plate: A component that holds ejector pins, which push the molded part out of the mold once it has cooled and solidified.
Clamping Unit: The part of the injection molding machine that holds the mold tightly closed during the injection process to withstand the high pressure of the molten plastic.
Tie Rods: Steel rods that connect the stationary and movable platens, providing structural integrity and ensuring proper alignment of the mold during the injection cycle.
The plastic injection molding process begins with the selection of the appropriate thermoplastic material. The plastic pellets are fed into the hopper, where they are transported to the barrel. As the pellets move along the screw, they are heated until they reach a molten state.
Once melted, the plastic is injected into the mold through a nozzle at high pressure. The mold, which has been cooled, allows the molten plastic to fill the cavities and take on the desired shape. After a specified cooling time, the mold opens, and ejector pins push the finished part out, ready for further processing or assembly.
This efficient and versatile method enables manufacturers to produce complex shapes with high precision, making plastic injection molding a cornerstone of modern production practices.
The History of Plastic Injection Molding
1. Introduction
Plastic injection molding consists of heating plastic until it melts, then injecting it into a mold where it cools and assumes the intended shape. Known for its speed and accuracy, injection molding has revolutionized how we create plastic products, making it possible to produce complex shapes in large quantities. By exploring the history of plastic injection molding, we can appreciate its impact on modern manufacturing and the innovations that continue to shape its future.
2. Early Beginnings (19th Century)
The journey of plastic injection molding began in the early 1860s with the invention of plastic itself. Bakelite, created by Leo Baekeland in 1907, was the first synthetic plastic, paving the way for new manufacturing possibilities. Though Bakelite became prominent later, its development marked the beginning of a new era in materials science.
In 1872, John Wesley Hyatt introduced the first injection molding machine, which utilized a hand-operated plunger to inject molten plastic into a mold. This innovative device allowed for the creation of complex shapes and designs that were previously difficult to achieve with traditional methods. Hyatt’s invention laid the groundwork for the future of plastic manufacturing, setting the stage for the rapid advancements that would follow in the 20th century.
3. Mid-20th Century Developments
The mid-20th century marked a significant turning point for plastic injection molding, driven by the introduction of advanced thermoplastics. These materials offered greater flexibility, durability, and heat resistance compared to earlier plastics, enabling manufacturers to produce a wider variety of products. The 1950s also saw the emergence of the first fully automated injection molding machines, which streamlined production processes and significantly increased efficiency.
This period coincided with the rapid growth of the automotive and consumer goods industries, leading to a surge in demand for injection molded parts. As manufacturers sought to meet the needs of an expanding market, injection molding became the preferred method for producing components ranging from dashboard panels to household appliances. This shift not only underscored the versatility of injection molding but also solidified its role as a cornerstone of modern manufacturing.
4. Technological Advancements (1970s-1990s)
The late 20th century brought significant advancements in plastic injection molding, notably through computer-aided design (CAD) and computer numerical control (CNC).
CAD and CNC
CAD revolutionized mold design by enabling precise digital models, reducing errors and development time. CNC technology automated the machining process, enhancing efficiency and consistency while lowering labor costs.
Innovations in Materials
This era also saw the rise of engineering plastics, like polycarbonate and nylon, which offered improved strength and heat resistance. Additionally, recycling practices began to gain traction, allowing for the integration of recycled materials into production, promoting sustainability in the industry.
5. Modern Era (2000s-Present)
The 21st century has ushered in transformative changes in plastic injection molding, particularly with the rise of Industry 4.0, automation, and smart manufacturing.
Industry 4.0 and Automation
Industry 4.0 has integrated advanced technologies, such as the Internet of Things (IoT) and artificial intelligence, into injection molding processes. Automation enhances efficiency, reduces downtime, and allows for real-time monitoring, leading to more precise and responsive production systems.
Sustainability Trends
Current trends emphasize sustainability, focusing on the use of biodegradable plastics and energy-efficient machinery. Manufacturers are increasingly adopting eco-friendly materials and practices to minimize environmental impact, reflecting a growing commitment to sustainable production in the industry.
Importance in Manufacturing: Applications in Everyday Products
Plastic injection molding is essential in modern manufacturing, playing a pivotal role in producing a diverse range of products efficiently and cost-effectively. This process allows manufacturers to create high-quality, precise items across various industries, ensuring that consumer needs are met.

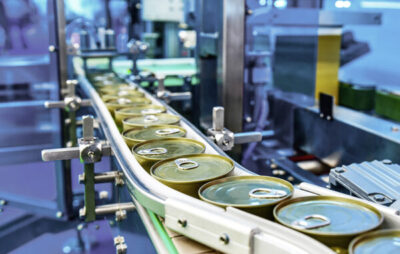

Everyday applications of plastic injection molding are vast and varied. In the packaging industry, it is used to produce containers, bottles, and lids, providing essential protection and convenience for food and consumer goods.
The automotive sector relies on injection molding for manufacturing critical components, including dashboards, bumpers, and various interior and exterior parts, which require durability and precise engineering.
Additionally, consumer goods such as kitchenware, toys, and electronic housings are commonly produced using this method, highlighting its versatility in meeting diverse design and functionality requirements.
By facilitating the rapid and efficient production of these products, plastic injection molding not only enhances consumer access to everyday items but also supports the economic growth of the industries involved.
Economic Impact on Industries
The economic impact of plastic injection molding on industries is significant. It contributes to reduced production costs and increased efficiency, allowing companies to scale up operations while maintaining quality. The ability to produce large quantities of identical parts quickly translates to lower prices for consumers and higher profit margins for manufacturers. Additionally, the injection molding industry creates jobs in engineering, manufacturing, and quality control, supporting local economies. As industries continue to innovate and adopt sustainable practices within injection molding, the economic benefits are likely to expand, driving further growth and competitiveness in the global market.
What are the steps of plastic mold injection?
Plastic injection molding is a sophisticated manufacturing process that transforms raw plastic materials into finished products with precision and efficiency. This technique involves several critical steps, each contributing to the successful production of high-quality components used in a wide array of applications. Understanding this process, along with the key components involved, is essential for grasping how plastic injection molding meets the demands of modern manufacturing.
A. Material Selection
The journey begins with material selection, where manufacturers choose between thermoplastics and thermosetting plastics based on the specific requirements of the intended product. Thermoplastics, known for their reusability and flexibility, are suitable for items that may require reshaping, while thermosetting plastics are selected for their rigidity and heat resistance once cured. Factors such as strength, flexibility, and temperature resistance are critical in this decision, ensuring the right material is used for optimal performance.
B. Heating and Melting Plastic Pellets
Once the material is selected, the plastic pellets are fed into the feed hopper, where they are stored before being directed into the barrel. The heaters surrounding the barrel play a vital role in uniformly heating the pellets to a molten state. Inside the barrel, the reciprocating screw moves the pellets forward while mixing them to ensure consistent melting. Precise temperature control is crucial during this stage, as it affects the flow properties of the molten plastic and ultimately influences the quality of the final product.
C. Injection into a Mold
After the plastic is melted, it is injected into a mold through the nozzle as part of the injection unit. This step requires both speed and accuracy to ensure the mold is filled completely without defects. The stationary platen holds the mold in place, while the movable platen allows the mold to open and close during the injection cycle. Various injection techniques, such as hot runner and cold runner systems, can be employed to optimize the efficiency of this process, with each method offering distinct advantages based on product design and production requirements.
D. Cooling and Solidification
Once the molten plastic fills the mold, the process shifts to cooling and solidification. This stage is critical for maintaining the integrity and dimensional accuracy of the finished part. Cooling methods—whether air cooling or water cooling—are employed to solidify the plastic quickly. The effectiveness of cooling directly impacts the final product; insufficient cooling can lead to warping or other defects.
E. Ejection of the Final Product
Finally, the molded part is ejected from the mold using the ejector plate, which houses ejector pins. These pins push the finished part out of the mold once it has cooled sufficiently. The clamping unit, consisting of components like tie rods, holds the mold securely closed during injection, ensuring that the high pressure of the molten plastic does not cause any separation or misalignment. After ejection, rigorous quality checks are performed to ensure that the final product meets specified standards, allowing for early detection of any defects before further processing or assembly.
Together, these steps illustrate the intricate and carefully controlled process of plastic injection molding, highlighting its significance in producing reliable and high-quality components for various industries.
Plastic Injection Molding & 3D Printing: Which To Choose
When it comes to injection molds, it’s inevitable to talk about 3D printing, a technology that has revolutionized the manufacturing landscape in recent years.

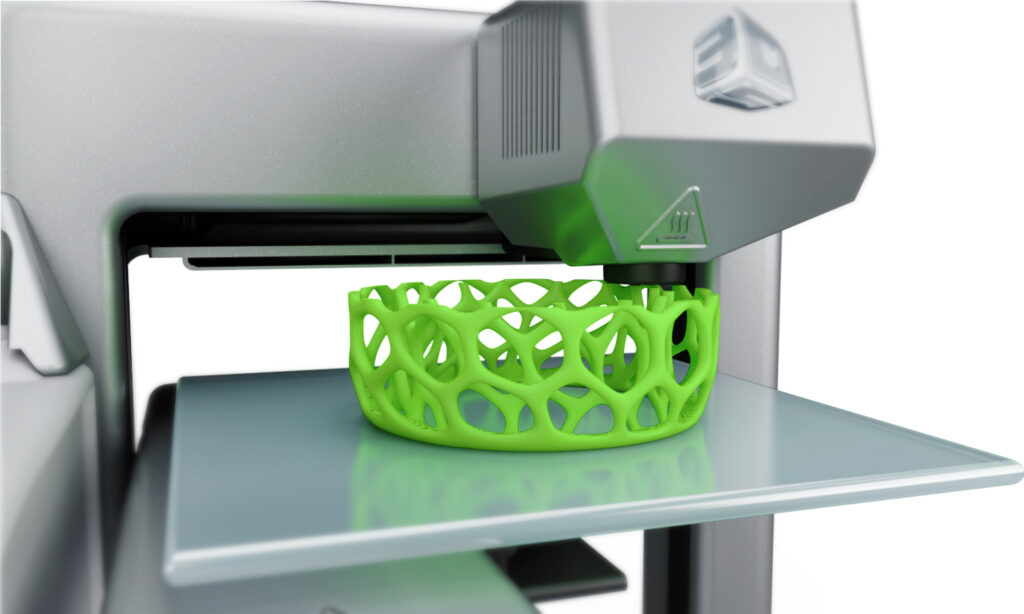

About 3D Printing
While injection molding has long been the preferred method for mass-producing plastic parts with high precision, 3D printing has emerged as a powerful alternative, particularly for prototyping and small-batch production. This additive manufacturing technique enables the creation of complex geometries and custom designs that are often difficult or impossible to achieve with traditional methods.
3D printing offers significant advantages, especially in terms of design flexibility. Unlike injection molding, which requires expensive molds that can take considerable time to produce, 3D printing builds objects layer by layer from a digital file. This not only allows for rapid prototyping but also makes it easy to modify designs without the need for new tooling, enabling companies to quickly test concepts and iterate on their products.
As industries increasingly seek innovative ways to streamline production, the relevance of comparing injection molding and 3D printing becomes clear. Each technology has its unique strengths and weaknesses, making them suitable for different applications. Understanding these differences helps manufacturers make informed decisions that best align with their production goals.
Advantages & Disadvantages:
Plastic Injection Molding Or 3D Printing
| Aspects | Plastic Injection Molding | 3D Printing |
|---|---|---|
| Efficiency and Speed | High production speed and output rates | Slower production speed for mass production |
| Precision and Repeatability | High precision with tight tolerances | Surface finish and precision may vary |
| Cost-effectiveness | Higher initial costs; lower per unit for mass production | Lower initial costs; higher per unit for mass production |
| Design Flexibility | More restrictions on the designed shapes | Highly complex geometries and custom designs possible |
| Durability of Products | Strong and durable parts | Mechanical properties may vary based on materials |
| Material Limitations | Limited to thermoplastics and thermosetting plastics | Versatile with various materials (plastics, metals) |
| Lead Times | Longer due to mold design and manufacturing | Quick iterations and modifications |
| Environmental Concerns | Issues with plastic waste and microplastics | Reduced material waste; potential for recycling |
When deciding between 3D printing and injection molding, it’s essential to consider the specific needs of your project.
For projects that require rapid prototyping or customization, 3D printing offers unparalleled flexibility. Its ability to create intricate designs without the need for molds allows for quick iterations and modifications, making it ideal for low-volume production runs or unique applications. However, this method can become cost-prohibitive when scaled up for mass production, as the per-unit costs tend to rise significantly.
On the other hand, injection molding shines in high-volume manufacturing scenarios. Once the initial molds are created, this method can produce large quantities of parts efficiently, resulting in a lower cost per unit. It also allows for a broader range of durable materials, which can enhance the strength and functionality of the final products. However, the upfront investment in molds can be substantial, and design changes after production begins can be challenging and costly.
Ultimately, the choice between 3D printing and injection molding should align with your production goals, budget constraints, and desired material properties. A thorough assessment of these factors will help you make an informed decision, ensuring that you select the most effective manufacturing process for your needs.
What Is The Future of Plastic Injection Molding?
1. Industry 4.0 and Smart Manufacturing
The adoption of Industry 4.0 principles is transforming plastic injection molding through the integration of IoT technology. Smart machines equipped with sensors gather real-time data on various production parameters, such as temperature, pressure, and cycle times. This data allows for predictive maintenance, enabling manufacturers to anticipate issues before they lead to downtime. Furthermore, real-time monitoring enhances process optimization and quality control, resulting in improved efficiency and reduced operational costs.
2. Advanced Materials
The development of new materials is a critical trend shaping the future of injection molding. Innovations in biodegradable plastics and high-performance polymers not only expand the applications of injection molding but also address environmental concerns. These advanced materials can offer improved mechanical properties and reduced environmental impact, making them attractive choices for manufacturers committed to sustainability. The ability to use such materials also opens up new markets and product possibilities, increasing the relevance of injection molding in various industries.
3. Automation and Robotics
The rise of automation and robotics in injection molding operations is enhancing productivity and precision. Robotic systems are increasingly used for tasks such as material loading, part removal, and quality inspection, minimizing the reliance on manual labor. This shift not only reduces labor costs but also enhances consistency and accuracy in production. As automation technology continues to evolve, manufacturers can expect significant improvements in efficiency, faster production cycles, and higher quality products.
Conclusion
In conclusion, plastic injection molding stands as a cornerstone of modern manufacturing, offering unparalleled efficiency, versatility, and precision for a wide range of applications. Whether you’re developing prototypes or scaling up for mass production, understanding the intricacies of this process is crucial for making informed decisions. KingStar Mold, as the leading custom plastic injection molding company, we are dedicated to providing innovative solutions that meet your unique manufacturing needs. Explore our services and discover how we can help bring your ideas to life with the power of injection molding. Join us on this journey toward efficiency and excellence in plastic manufacturing!
