MUD Injection Mold Building

MUD injection mold building uses a standardized master frame with interchangeable inserts to reduce tooling costs and shorten lead times. This method is ideal for prototyping, low-volume production, and parts with frequent design changes.

Cost-effective tooling system
Quick-change mold inserts
Ideal for prototyping and short runs

Get A Quote

What is MUD Injection Mold?

From our experience in injection mold building, MUD Injection Molds are all about smart efficiency. They’re modular setups where the main mold base stays the same—we just swap out the inner cores and cavities for different part designs.

This means when a client needs to switch from making, say, a small plastic gear to a connector, we don’t have to rebuild the entire mold. The standardized base (we use precision-machined steel frames) locks in the new inserts quickly, cutting lead times by 30% on average compared to custom molds.

We’ve found they work best for low-to-mid volume runs—like medical device components or consumer electronics parts—where flexibility matters. And since the base is reusable, it slashes tooling costs for clients who need multiple part variants. It’s not just a mold; it’s a time-saver we’ve refined over years to fit real production needs.

Our MUD Injection Mold Types

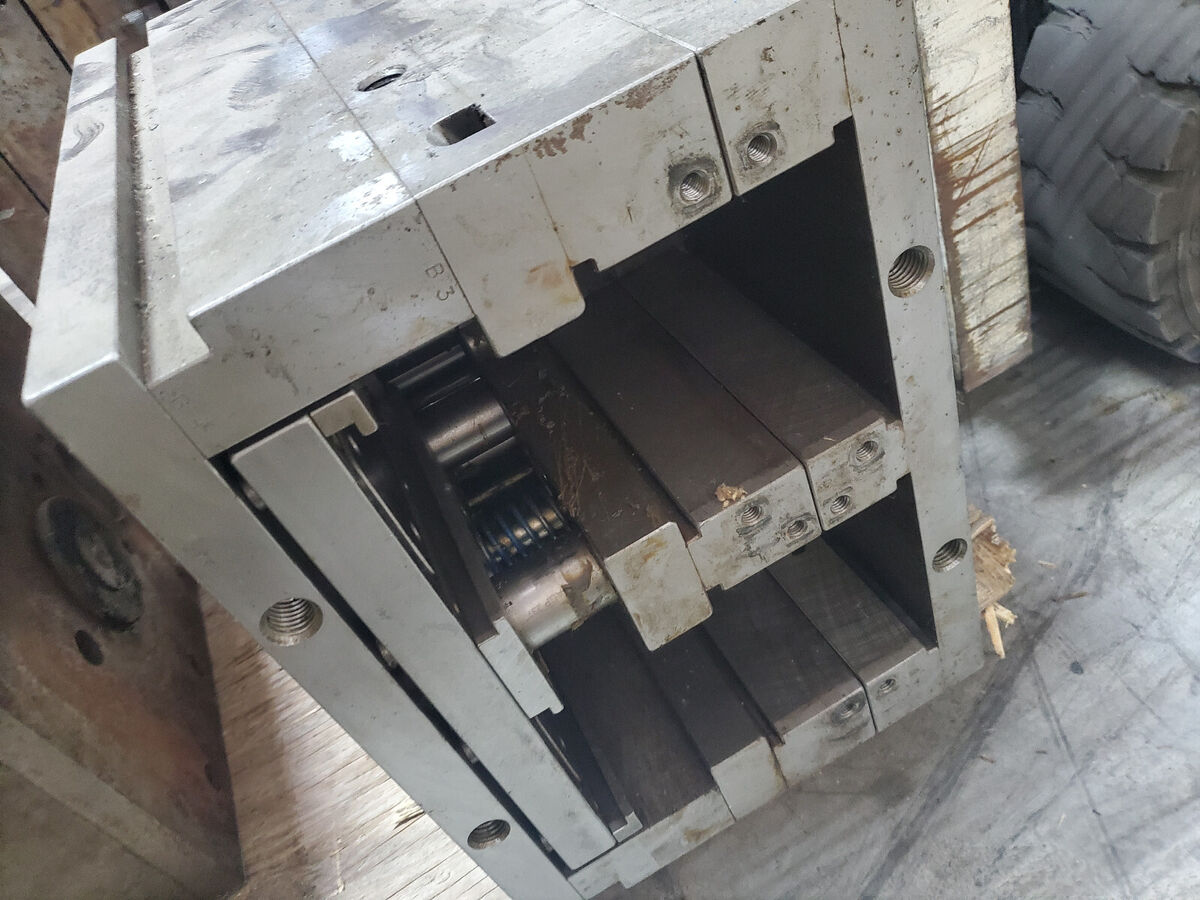

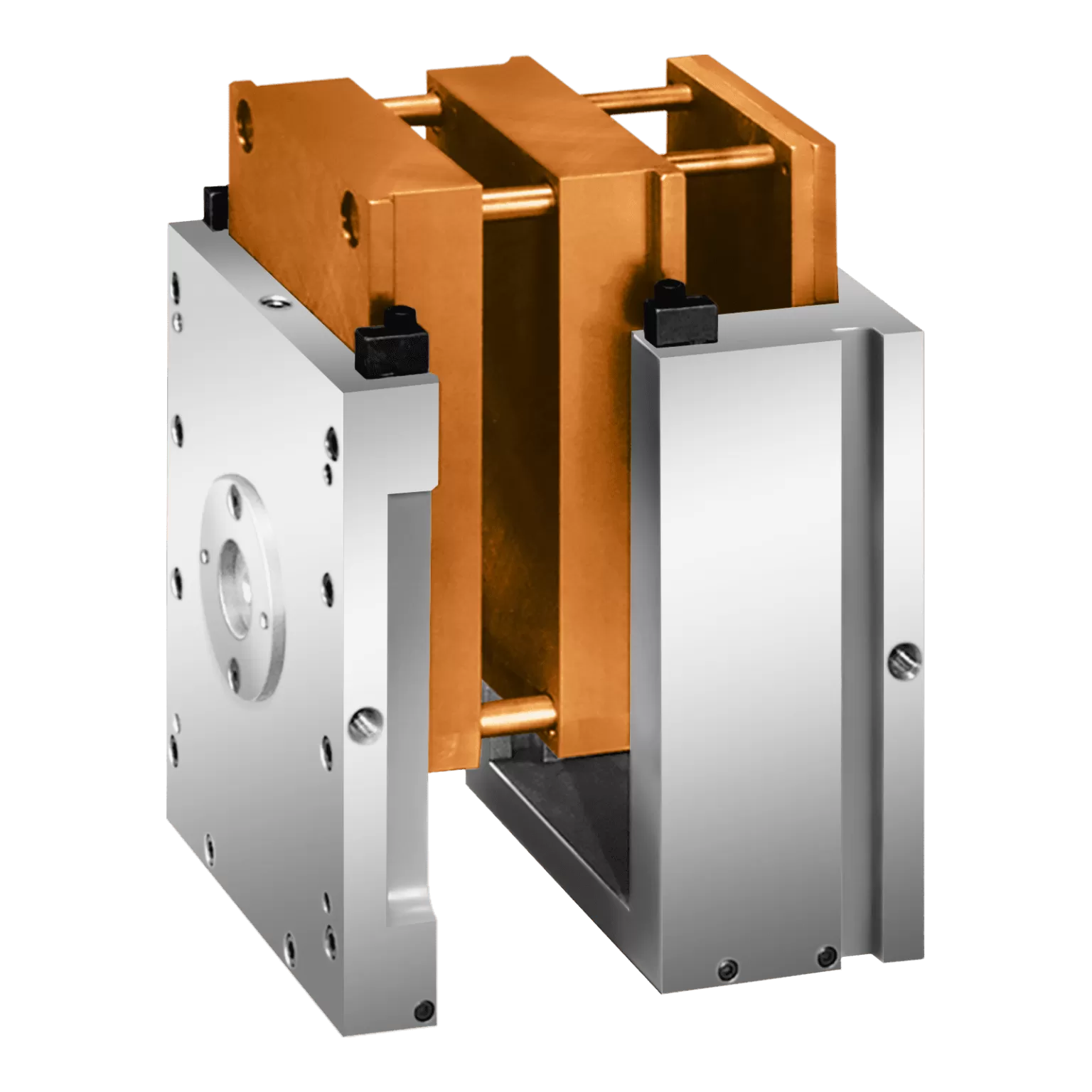

The Master Unit Die Quick-Change (MUD) System includes a straightforward frame designed to hold various inserts. There are four types of frames, tailored to the part size and production volume:

E-Frame

U-Frame

T-Frame

H-Frame

Double H-Frame

MUD Mold Materials

There is no fundamental difference in the base materials between MUD molds and traditional molds; the core distinction lies in how the materials are applied rather than the materials themselves. This is a conclusion we have repeatedly verified in our production practice:

Traditional molds feature an integrated structure where the cavity, core, and mold base are unified, typically using steels like P20 or 718H for the entire structure. In contrast, the base frame of MUD molds (the reusable part) is made of high-strength steel such as S50C to ensure durability, while the replaceable inserts (cavity/core) are flexibly selected based on product requirements — for example, 45# steel for ordinary plastic parts, H13 steel for high wear resistance needs (such as glass fiber reinforced materials), and NAK80 pre-hardened steel for precision parts.

For more information about mold materials, please visit our mold building materials page.

Why Choose MUD Injection Molds

Faster Turnaround & Lower Costs

Our reusable base frame eliminates the need for full mold reconstruction—only inserts require machining for new parts. For example, a client producing 5 variants of automotive sensors saw tooling costs drop by 58% compared to custom molds, as we only fabricated new inserts. Most inserts ship within 7–10 days, thanks to our pre-calibrated base designs that reduce machining steps by 40%.

Lightning-Fast Changeovers

Our precision-machined base features self-aligning guide pins (±0.005mm tolerance) and quick-release clamps. A consumer electronics client recently swapped 3 insert sizes in a single shift—each change took just 4 minutes, from loosening 4 bolts to restarting production. This is a 95% reduction from their previous 2-hour traditional mold changeovers.

Flexible Production

The modular frame adapts seamlessly to small runs (using dummy inserts to fill unused slots) and scales for high-volume needs: our Double H Frame enabled a medical device manufacturer to quadruple output by running 4 identical inserts simultaneously. It also handles design tweaks effortlessly—last month, a client modified a plastic connector’s rib structure, and we delivered the revised insert in 3 days, keeping their production on schedule.

Simpler Storage & Maintenance

Inserts (typically 15–20kg) fit on standard shelving—one client reduced storage space by 70% compared to storing full traditional molds. Repairs are done off-machine: when a food packaging client’s insert needed polishing, we swapped in a backup, letting production continue uninterrupted while the original was serviced.

Details of MUD Frame Types

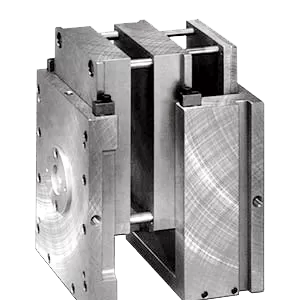

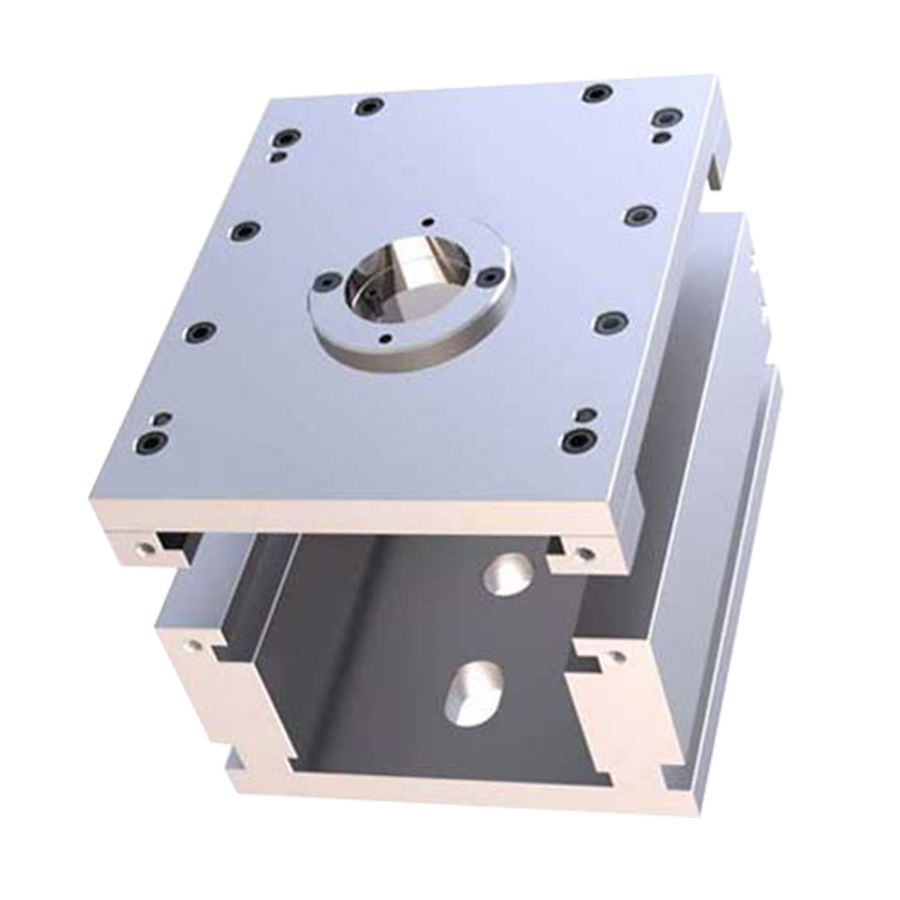

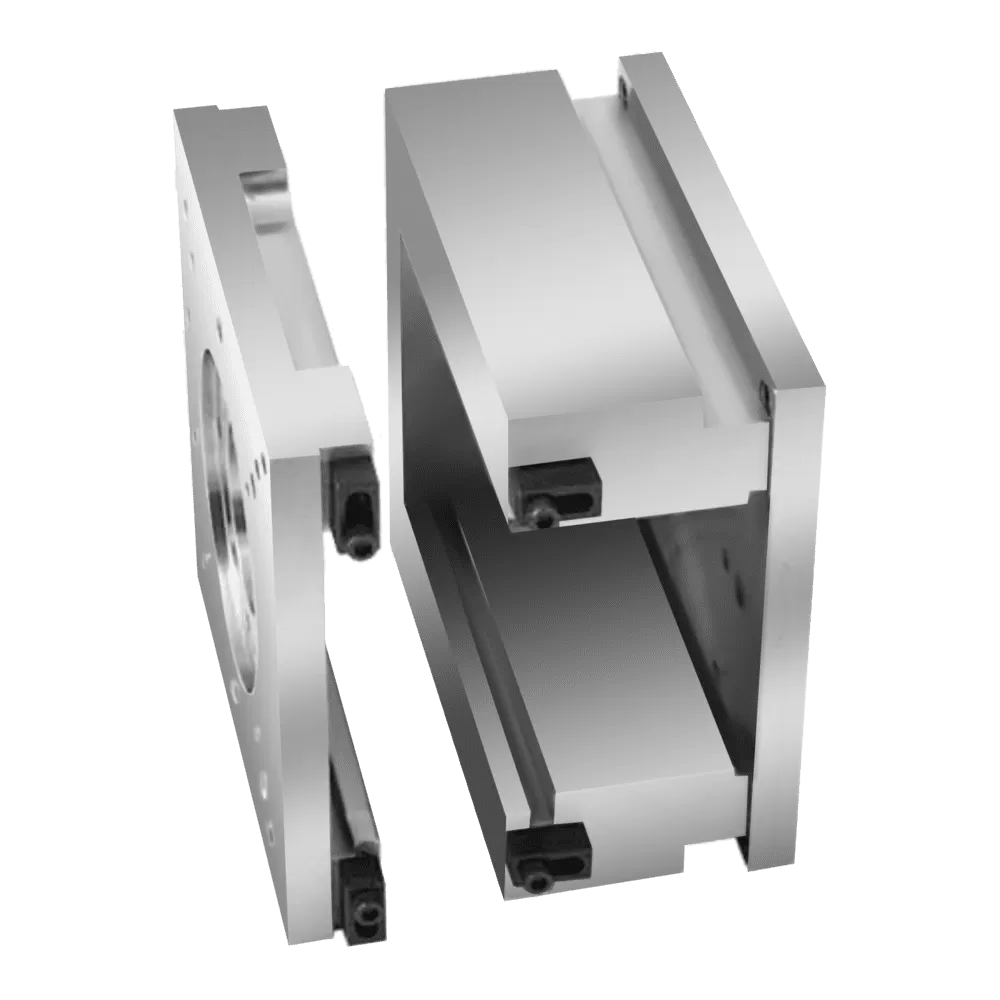

U-Frame & T-Frame

Features & Benefits

Available in two insert styles: Standard (fits inside the frame) and T-style (extends to the outside width)
Fast mold changeovers help maintain cylinder temperature, minimizing the need for purging
Ideal for efficient production runs and reducing machine downtime

Specifications

Built from standard pre-hardened #2 steel with a Brinell hardness of 285–325
Offered in a range of sizes from 05/05 to 18/26
Comes complete with a locating ring and sprue bushing
Additional standard sizes are available upon request through our Customer Service

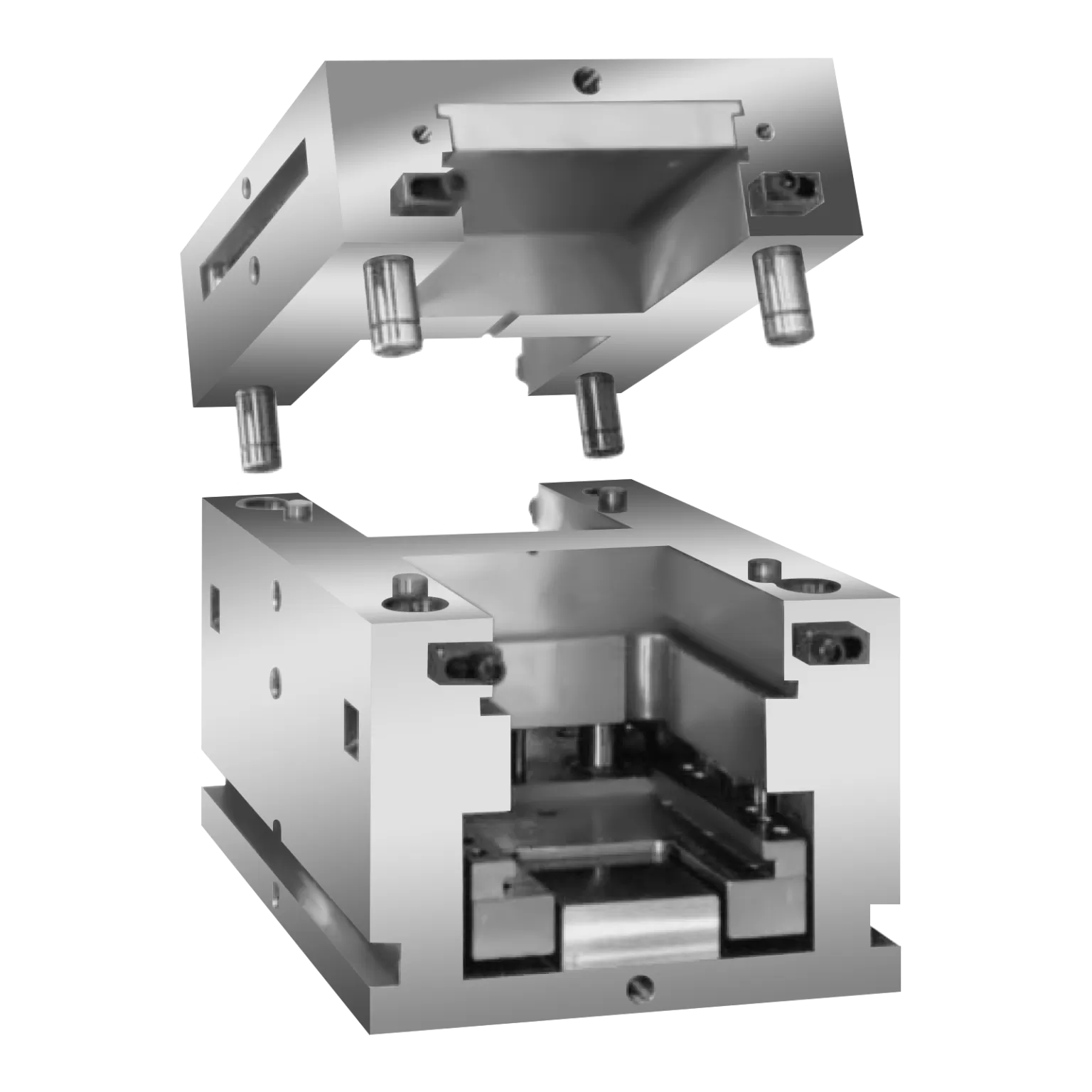

H-Frame & Double H-Frame

H-Frame: Features & Benefits

Supports molding with two standard companion inserts for flexible production
A blank insert can be used to block off a section when running a single mold
Optional interlocking rails allow ejector system integration with the master frame
Suitable for both injection and transfer molding processes
Compatible with hot runner systems for improved efficiency

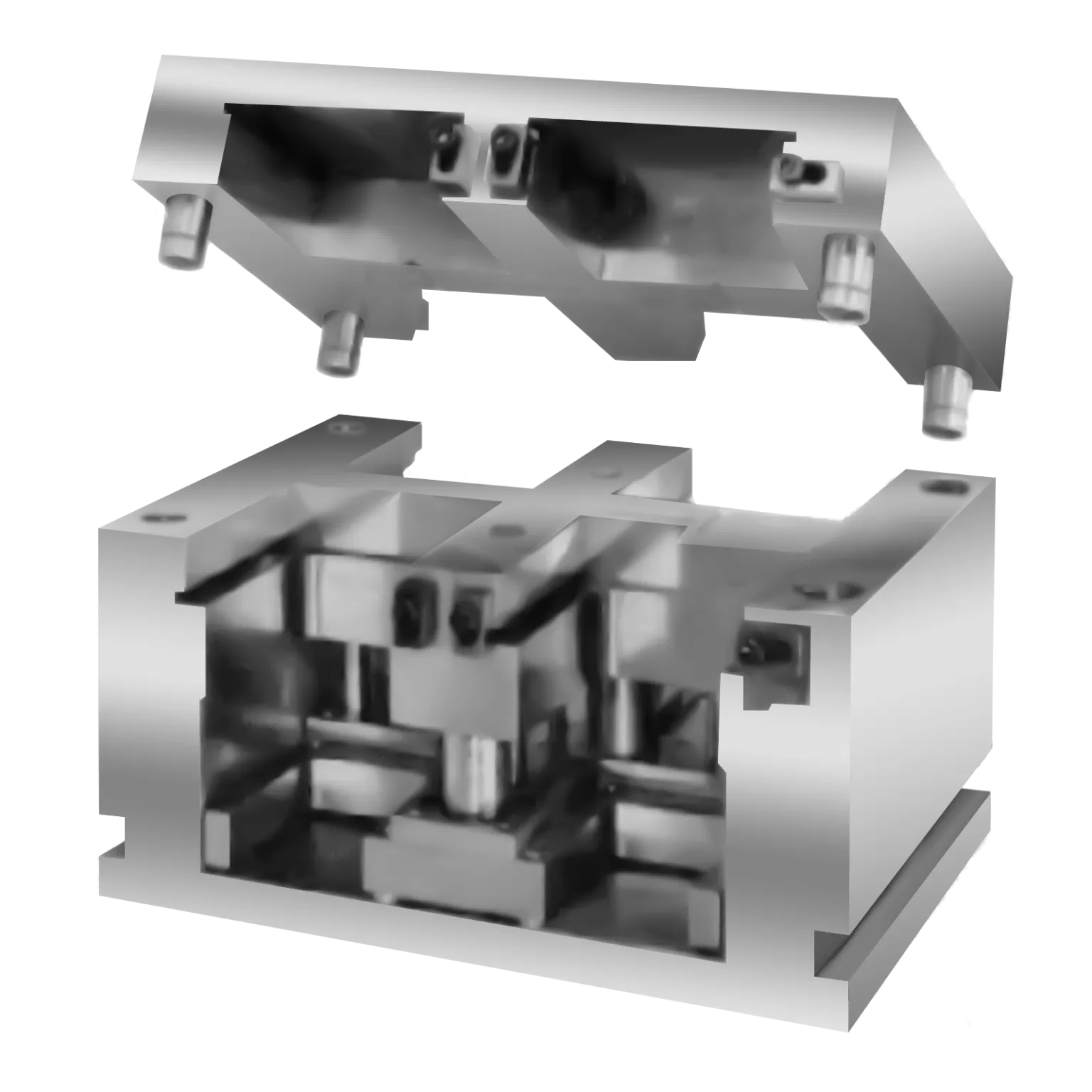

Double H-Frame: Features & Benefits

Designed to mold up to four inserts simultaneously for higher output
Blank inserts or runner shut-offs allow operation with fewer than four molds
Optional interlocking rail enables connection of the ejector system to the master frame
Fully compatible with hot runner systems for optimized mold flow

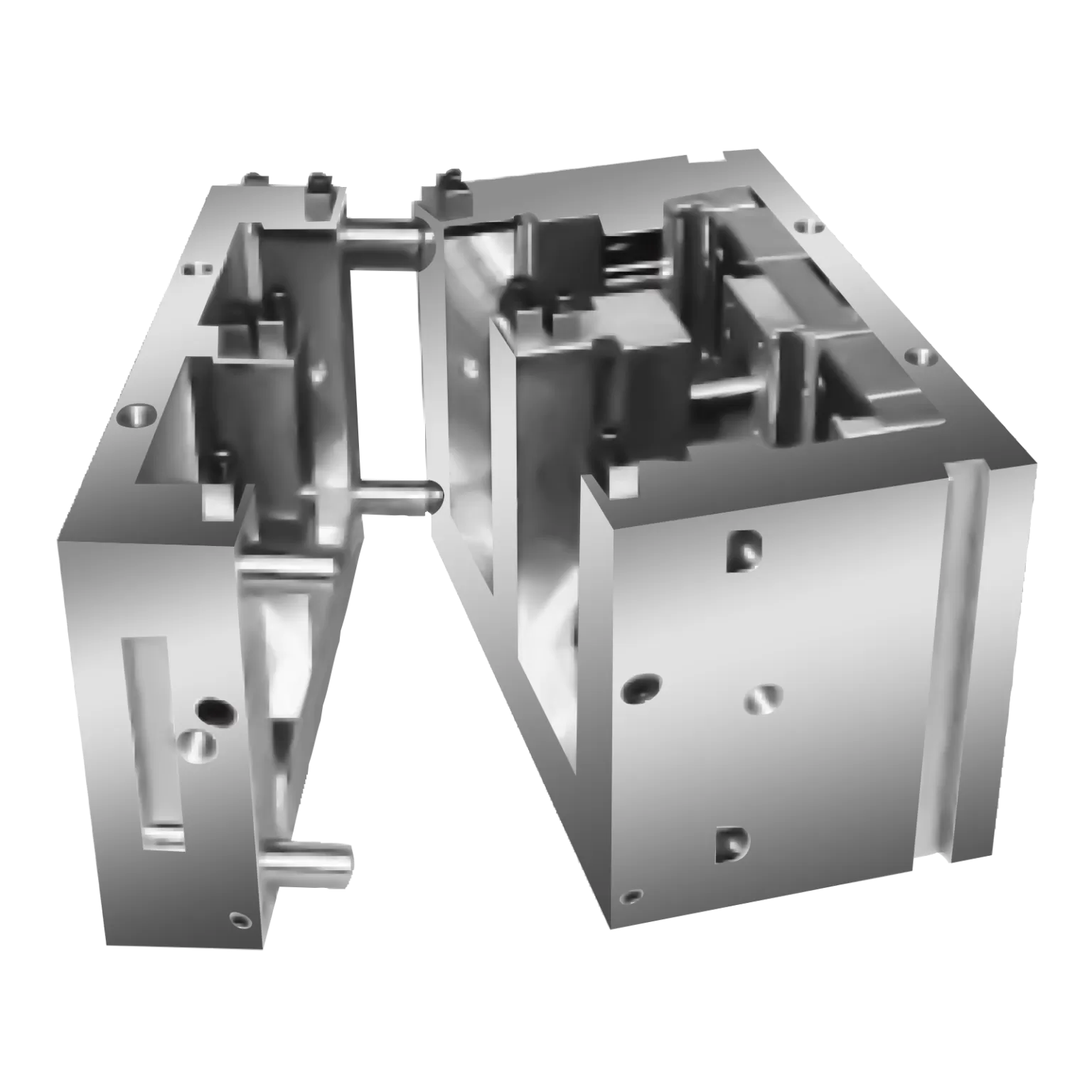

E-Frame

Features & Benefits

Enables simultaneous molding using two front-loading unit molds for increased productivity
Allows single-insert operation by blocking off a section with a blank insert
Optional interlocking rails let the ejector system integrate with the master frame
Compatible with both injection and transfer molding applications
Supports hot runner systems for efficient material flow

MUD Mold Insert Types

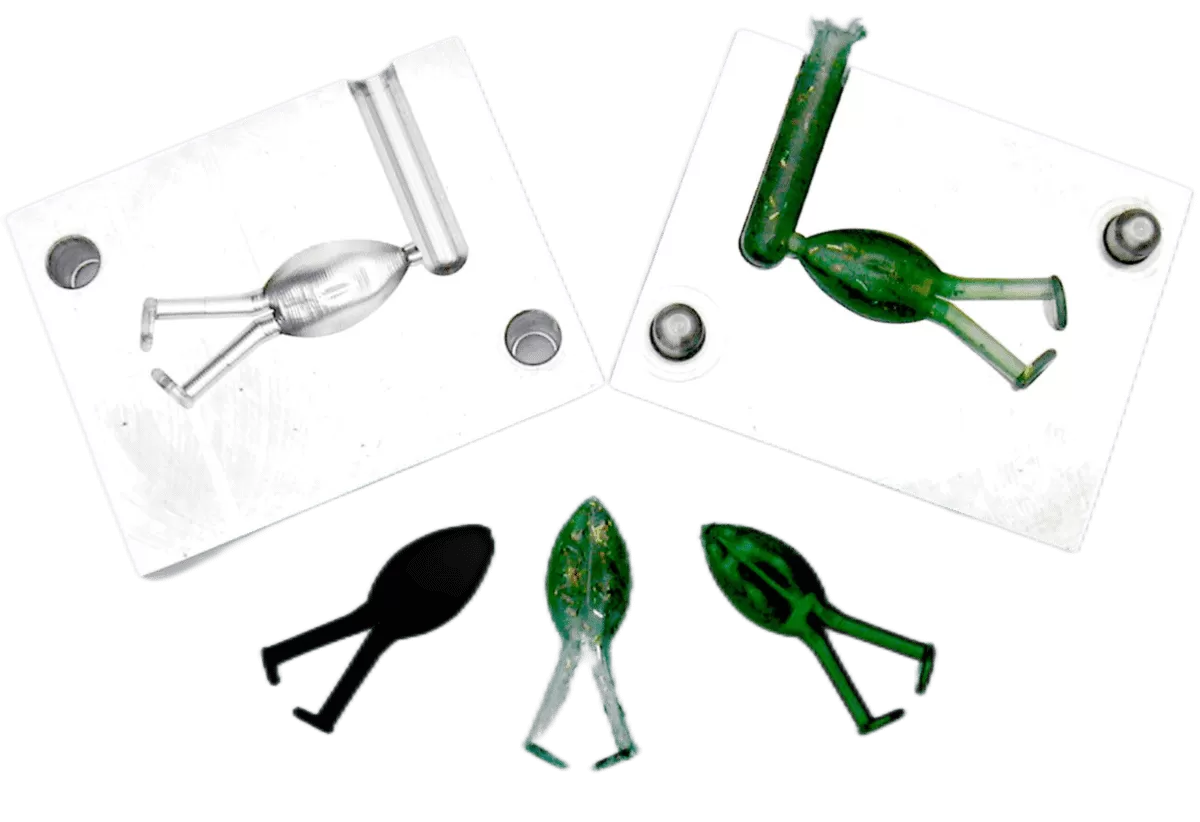

Standard Insert

Standard insert molds offer a budget-friendly solution when additional mold width isn’t required. They come in both solid and laminated styles and can be configured as three-plate or four-plate systems, depending on the application.

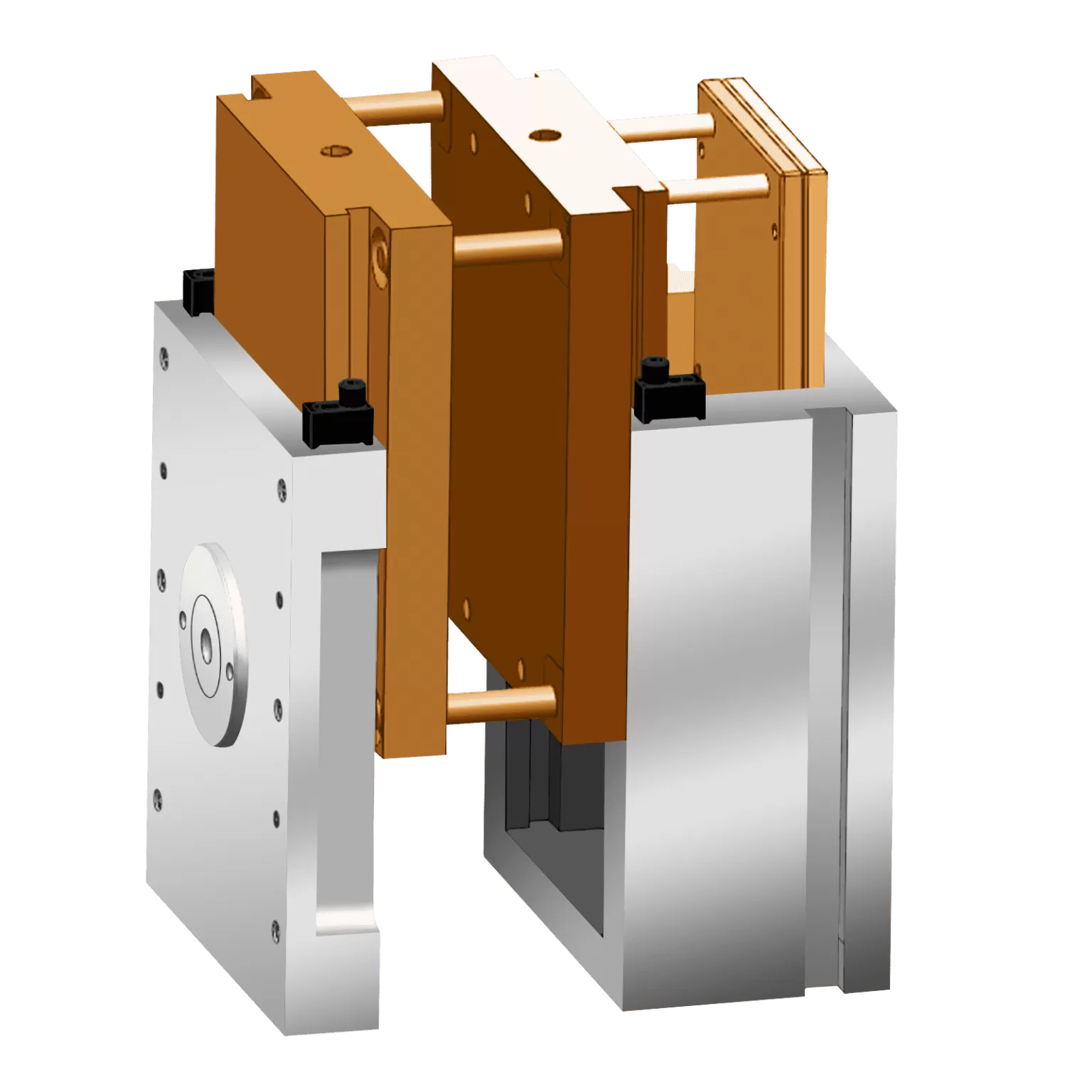

T-style Insert

T-style insert molds are ideal for maximizing cavity space within the frame. Typically available in laminated configurations with three- or four-plate designs, smaller versions can also be produced in either solid or laminated form for added flexibility.

U-style Insert

U-style insert molds are designed for front-loading applications and are commonly used in molding systems where fast changeovers are critical. These molds allow easy access for maintenance and quick insert swaps, making them a practical option for high-mix, low-volume production environments.

MUD® Quick-Change eBook

Discover how the MUD® Quick-Change eBook can help you reduce downtime, cut tooling costs, and streamline mold changeovers.

DOWNLOAD

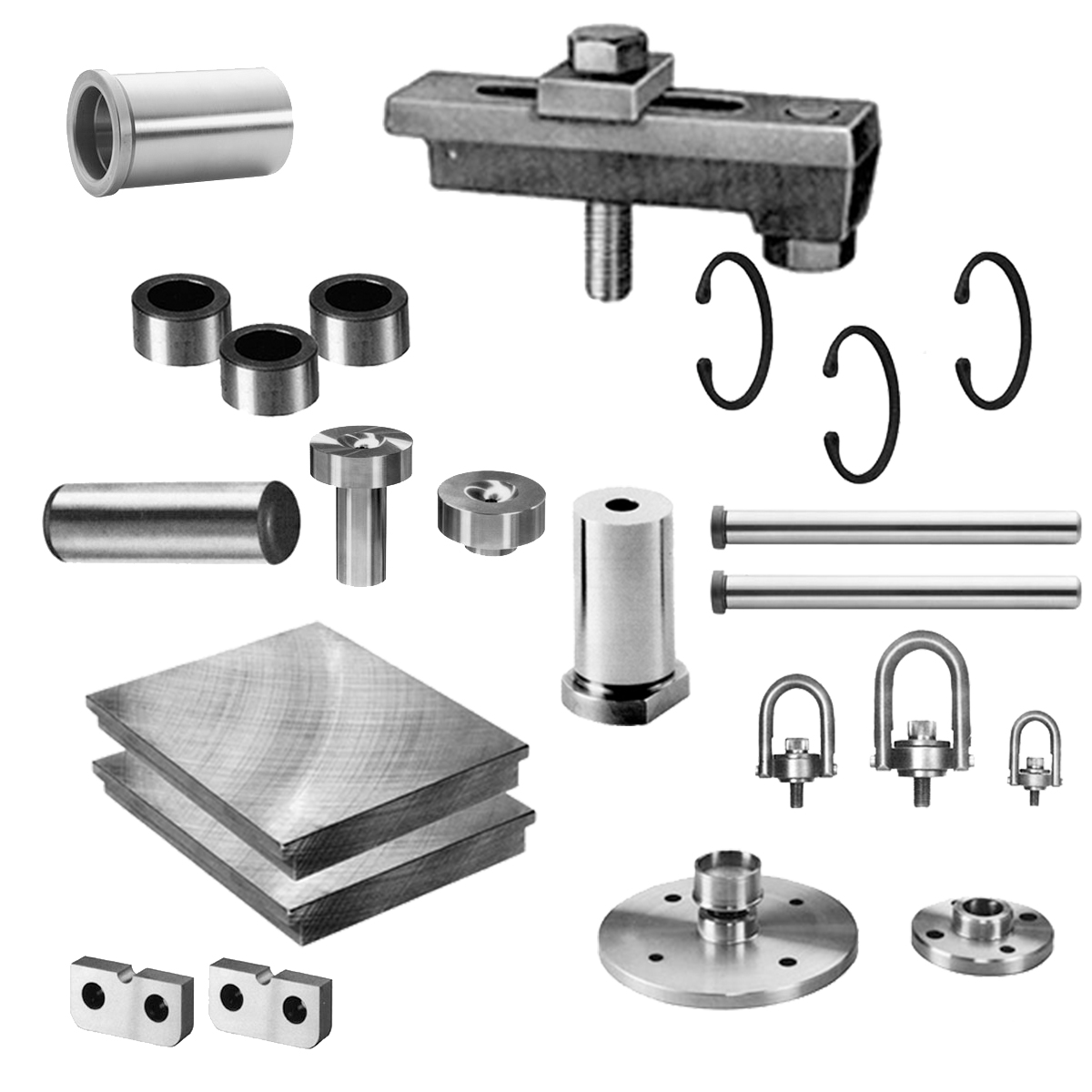

MUD Components

MUD Quick-Change® frames and companion insert mold series are designed to bring efficiency and cost savings to injection molding operations of all sizes. Compatible with machines up to 500 tons, these systems include a comprehensive range of components that allow full customization to meet various production needs. Their rapid changeover capability reduces downtime, improves productivity, and aligns perfectly with lean manufacturing strategies.

At KingStar Mold, we integrate MUD Quick-Change Systems to help our clients optimize performance while lowering operational costs. Our team ensures that every MUD setup is tailored for precise fit, fast turnaround, and long-term durability—making it an ideal solution for both prototyping and full-scale production. Whether you’re looking to shorten lead times or improve tooling flexibility, KingStar Mold delivers expert guidance and support throughout your mold design and manufacturing journey.

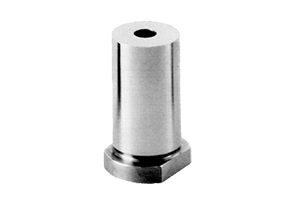

Sprue Puller Plug

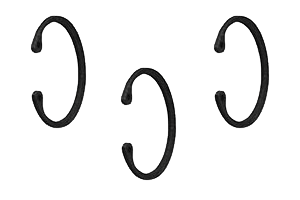

Snap Rings

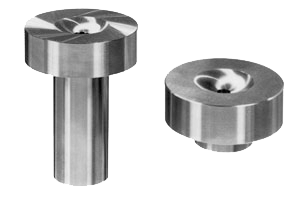

Sprue Bushings

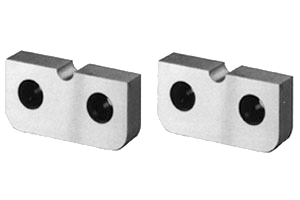

Hardened Runner Pads

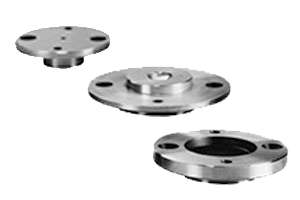

Top Locating Rings

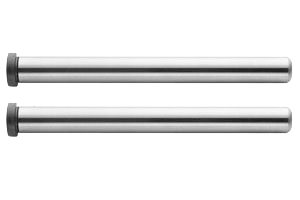

Straight Leader Pins

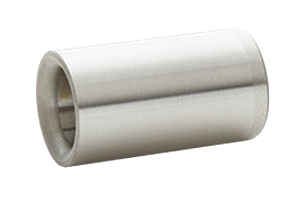

Straight Bushings

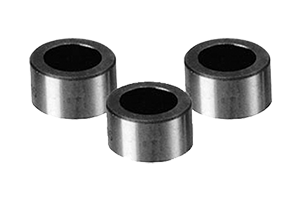

Spacers

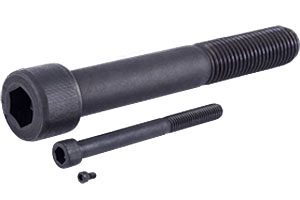

Frame Screw Shoulder

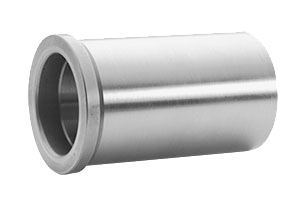

Shoulder Bushings

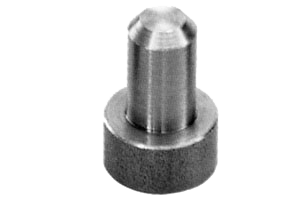

Rest Button

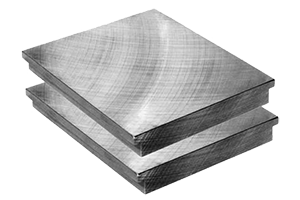

Ear Plates

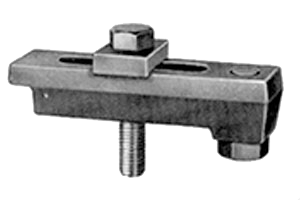

Mold Clamps

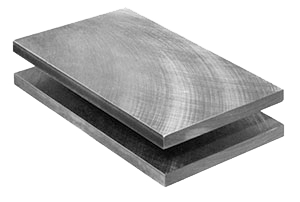

Standard Ejector Plate Sets

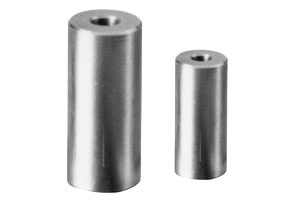

Insert Mold Pillar Post

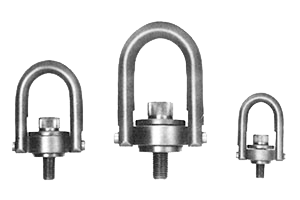

Snap Rings

Request More

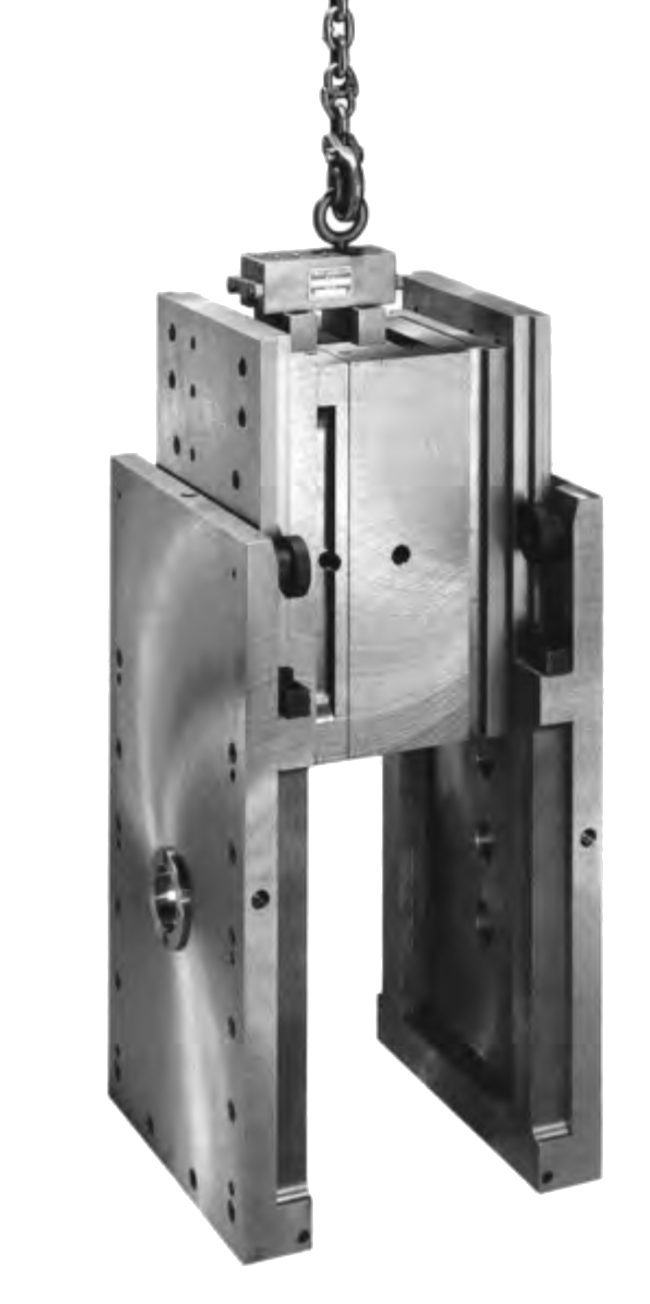

MUD Quick-Change Mold Base Adapter

What Is Our Adapter System?

Our Adapter System is a modular solution designed to convert traditional mold bases into a quick-change setup. It transforms your existing mold base into a MUD-compatible system, significantly increasing efficiency without the need to replace your entire tooling setup.

How Does the System Work?

• The adapter frame is mounted directly onto the molding machine. It can be clamped using traditional mold clamps or bolted in place using socket head cap screws and optional pre-drilled mounting holes.

• Ear plates are fastened to the existing standard mold base using socket head cap screws and locating dowels, ensuring secure alignment.

• Water lines are quickly connected via the system’s built-in water manifold, allowing fast and clean utility setup.

Key Benefits

• Rapid Mold Changes: Enables fast insert removal and installation, reducing downtime
• Streamlined Water Connections: Integrated water manifold allows instant utility hookup
• Minimal Setup Time: Greatly shortens changeover time without major equipment modifications

Key Benefits:

Purges waterlines in 30 seconds or less
No electrical components – simple and reliable mechanical operation
Reduces downtime and helps prevent corrosion in idle molds
Installs directly on the machine and becomes a permanent part of your setup

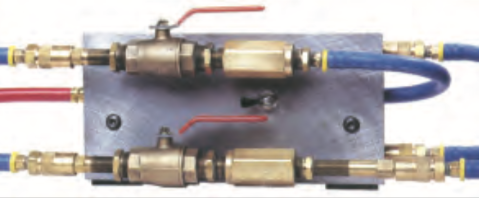

MUD Waterline Purge System

The MUD Waterline Purge System is the perfect solution for molders who want to flush waterlines before storing their molds. Engineered for efficiency, this fully mechanical system requires virtually no maintenance and is seamlessly integrated into the molding machine’s waterline system.

Easy 3-Step Operation:

Shut off the water supply using the two integrated valves
Activate the air switch to inject air and purge the cooling media
Reopen the valves when ready to resume water flow

For closed-loop systems, be sure to collect the purged media in a holding container to prevent spills.

The MUD Waterline Purge System simplifies maintenance, protects your tooling investment, and speeds up changeovers—making it an essential upgrade for any quick-change molding setup.

Start Your Project with a Click

Get A Quote

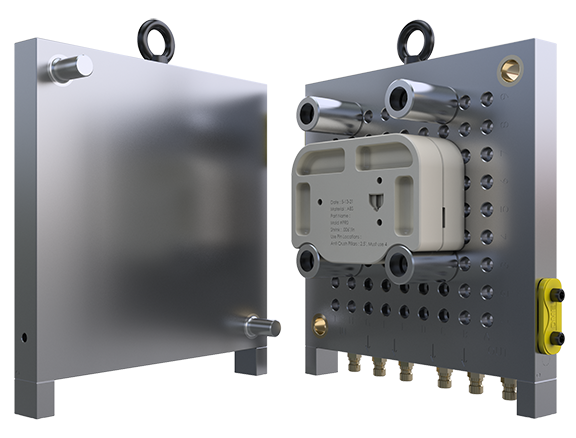

MUD Quick-Change Prototype Adapter

Achieve RAPID SUCCESS by transforming your MUD mold base into a Prototyping Base. There are times when prototypes made from actual production materials are necessary, particularly for low to mid quantities of parts where traditional production tooling may not be cost-effective. Your clients frequently face strict deadlines to launch new products for market testing. By incorporating our Quick-Change Prototype Adapter into your current MUD Mold System, you can swiftly produce high-quality parts that are suitable for real-world applications.

How We Work

Get Your Request

Get your detailed requirements for injection mold manufacturing, including mold materials, mold life, number of mold cavities, runner requirements, and surface treatment requirements

Confirm DFM Report

Our engineering team begins to conduct mold flow analysis and provides DFM ( Design for Manufacturing) report according to your detailed requirements and confirms all details with you

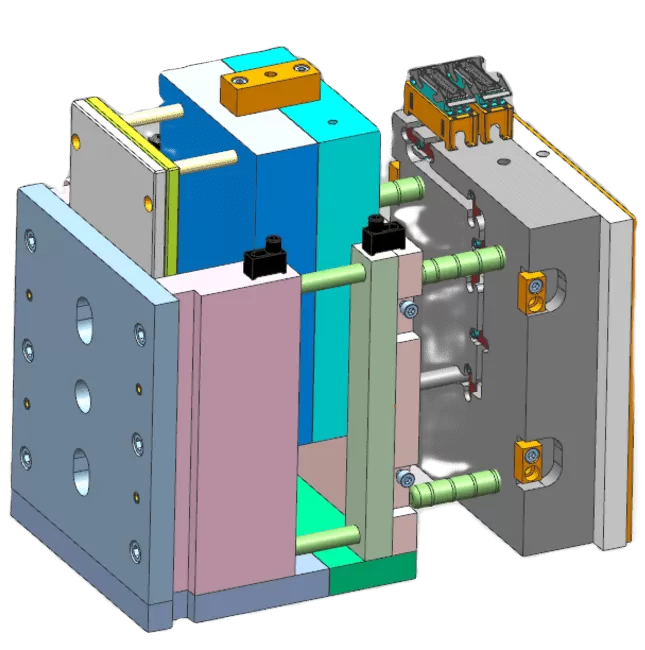

Mold Deisgn

Our engineering team make a 3D drawing design of the injection mold based on the confirmed DFM report, including all details of the mold and confirm the mold design drawings with you

Injection Mold Manufacturing

Based on the finalized mold drawings, we export the 2D drawings with key dimensions and tolerance requirements. Our plastic injection mold makers then begin manufacturing the injection mold and perform tolerance inspections at each processing step.

Mold Final Acceptance

Once the final sample is approved, we proceed with the final acceptance of the injection mold. For export molds, we begin the final packaging process. If the mold is ready for mass production within our facility, we prepare the necessary production materials.

Mold Assembly & Testing

Once the injection mold is created, we proceed with fitting, assembling, and testing the mold. This process is repeated until the product meets your specifications, after which we send you samples for confirmation.

Get Craft with Precision Now

Click to Start Your Project

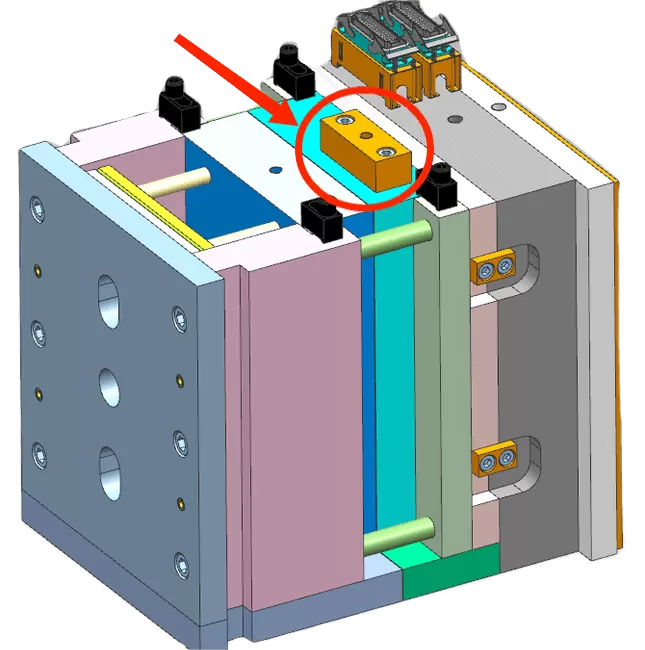

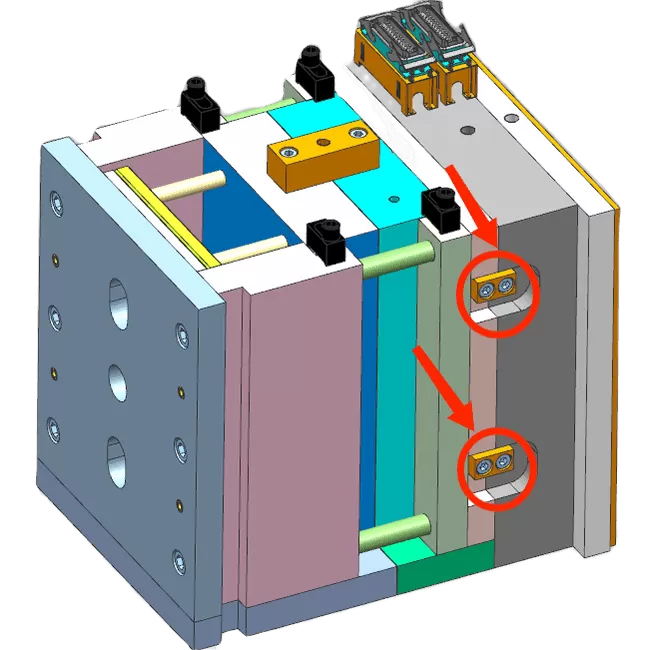

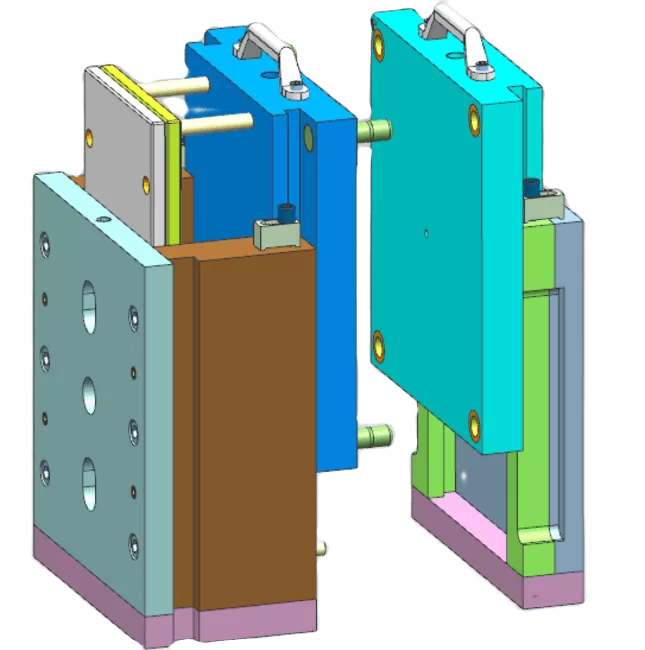

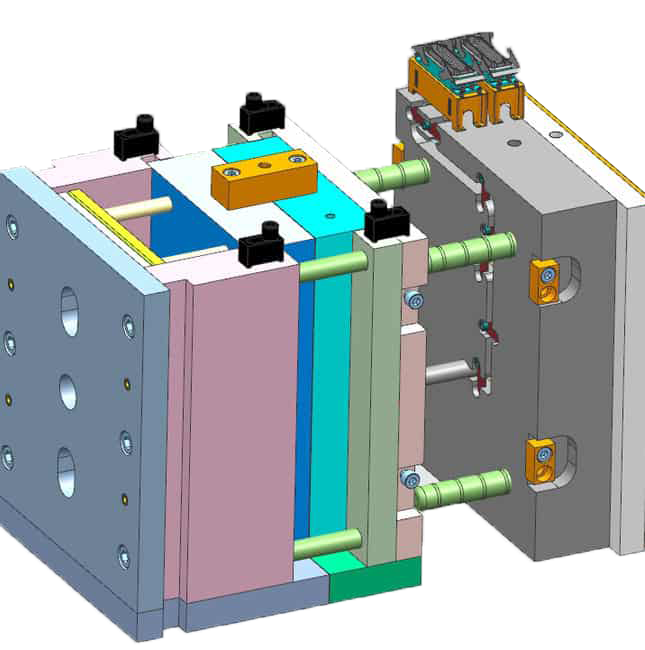

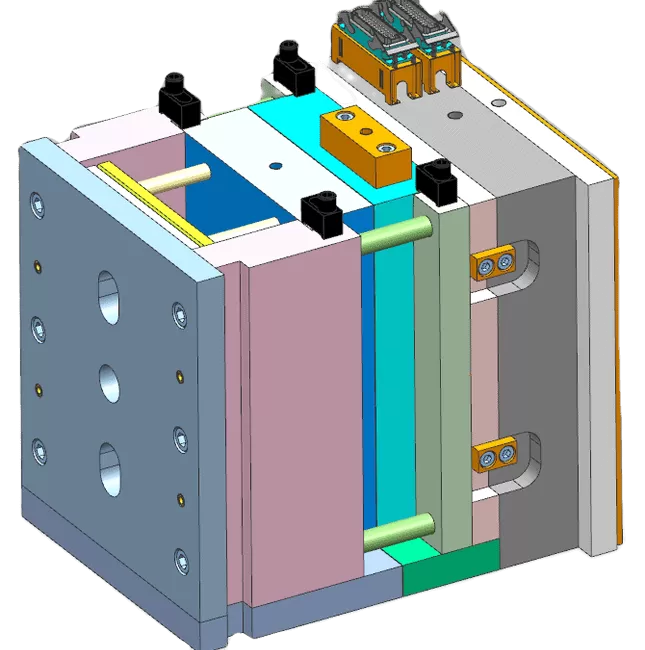

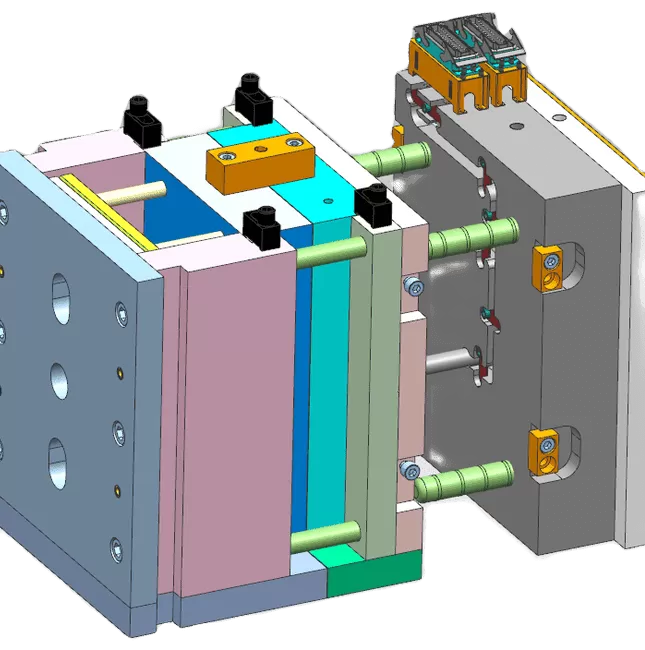

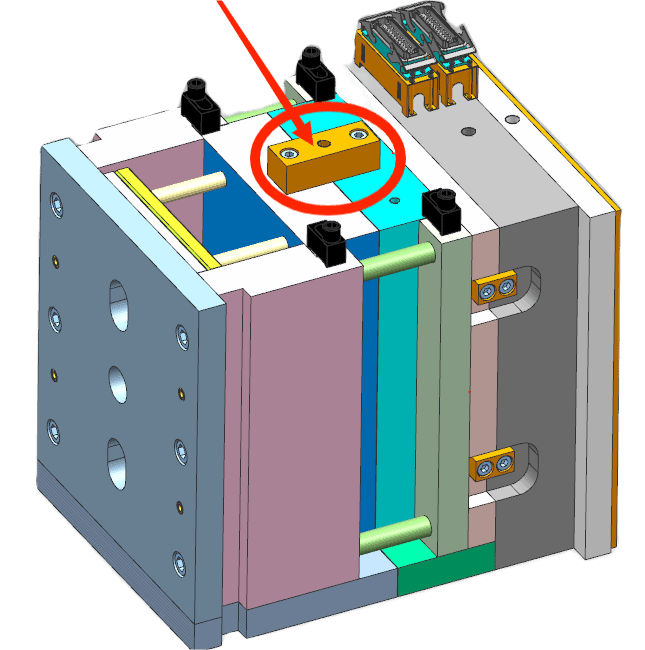

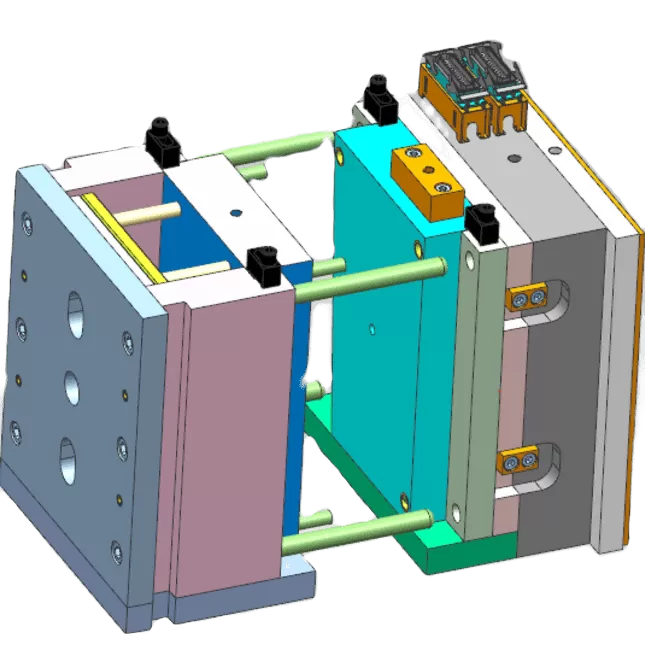

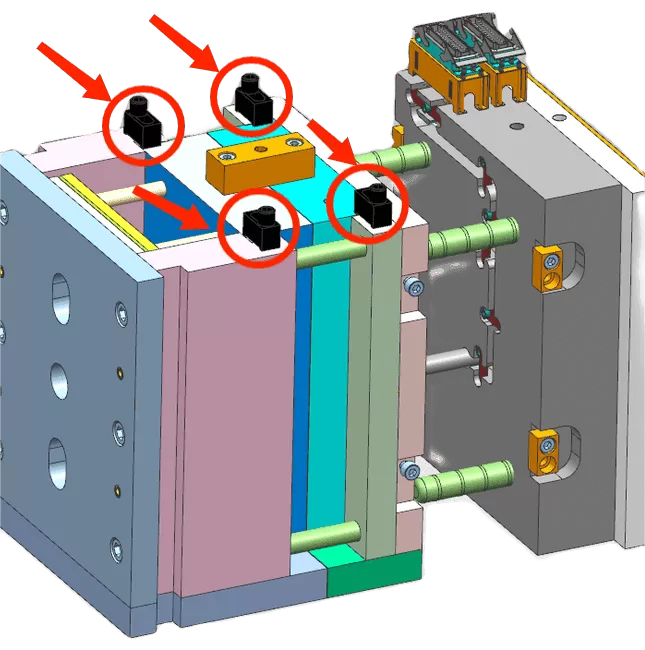

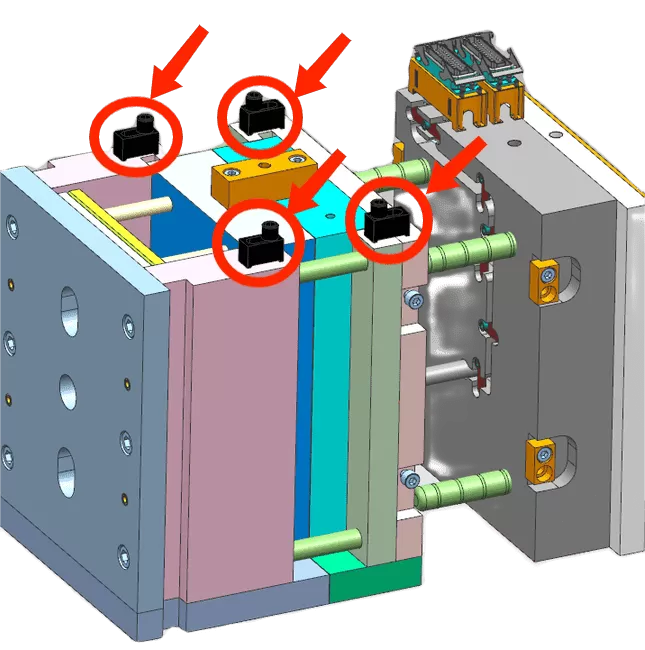

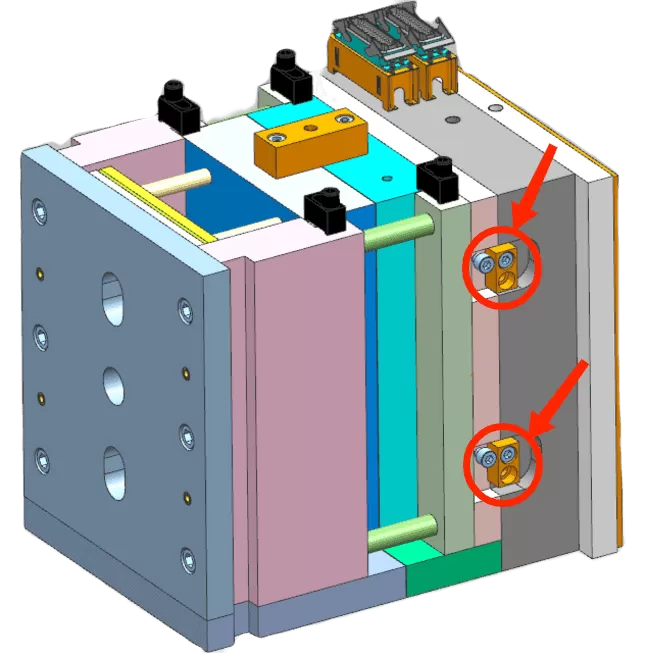

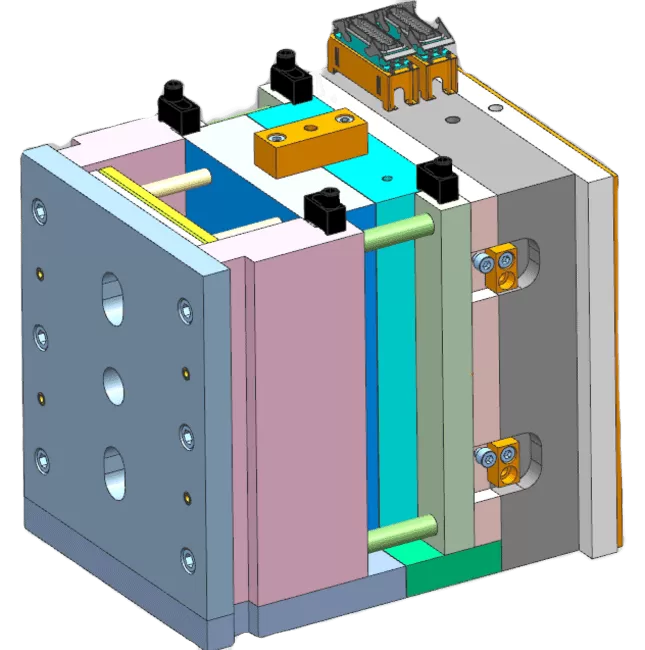

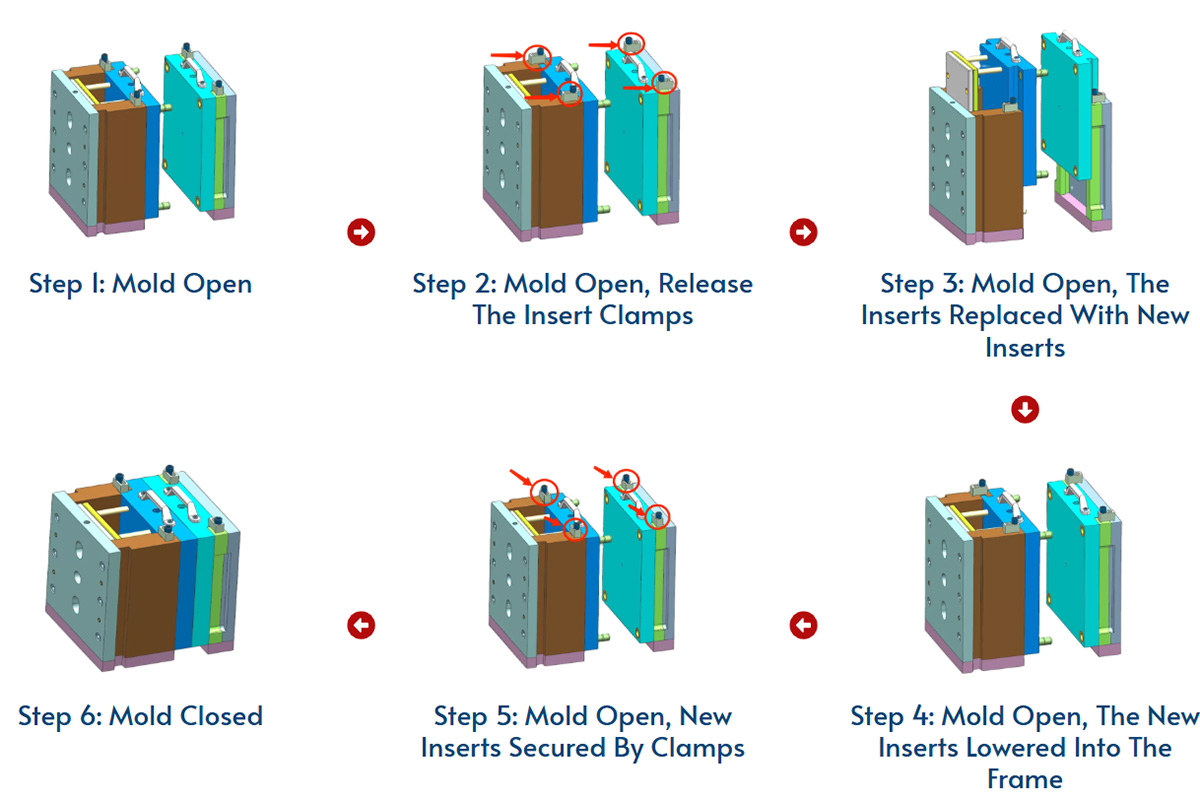

Workflow of Changing MUD Mold Insert

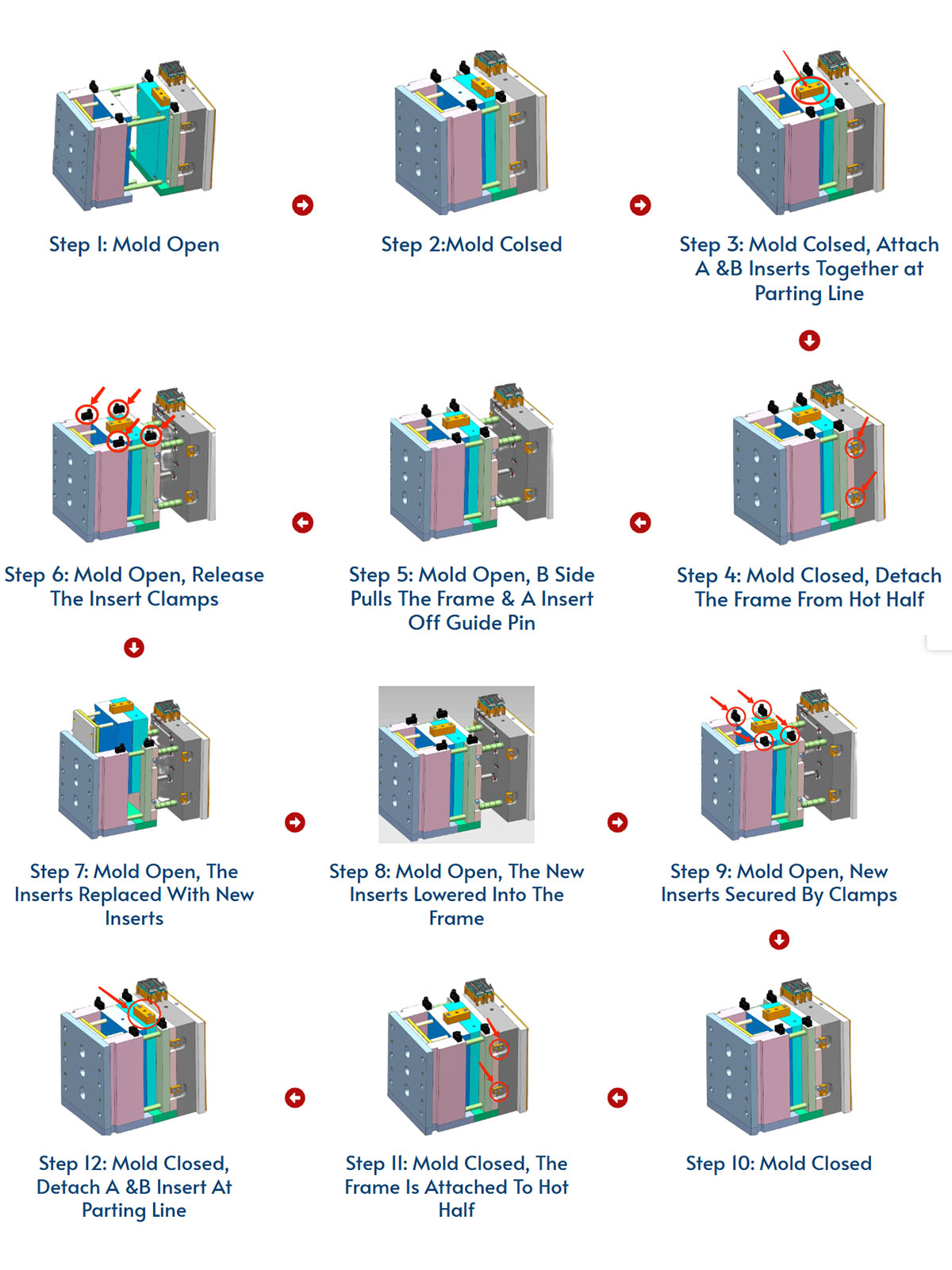

Hot Runner

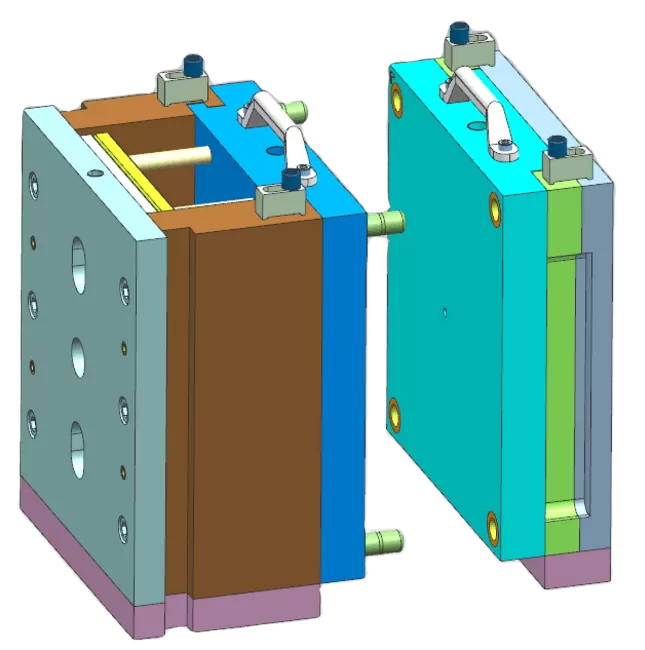

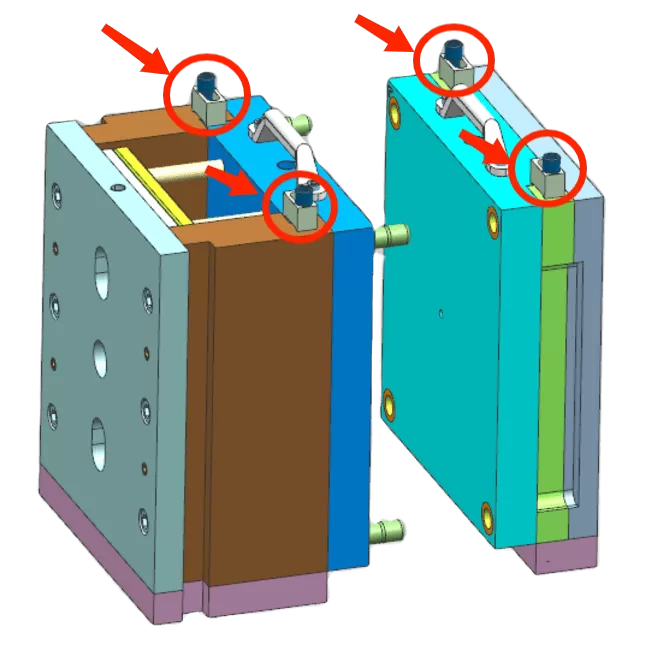

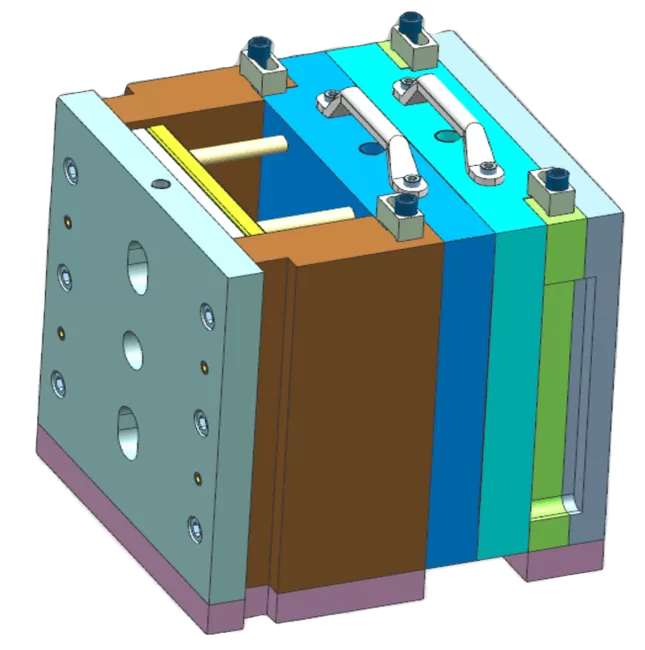

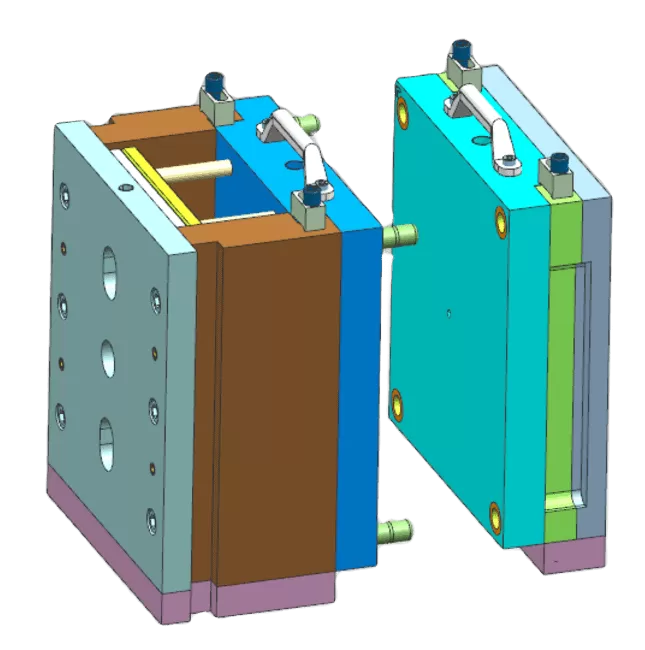

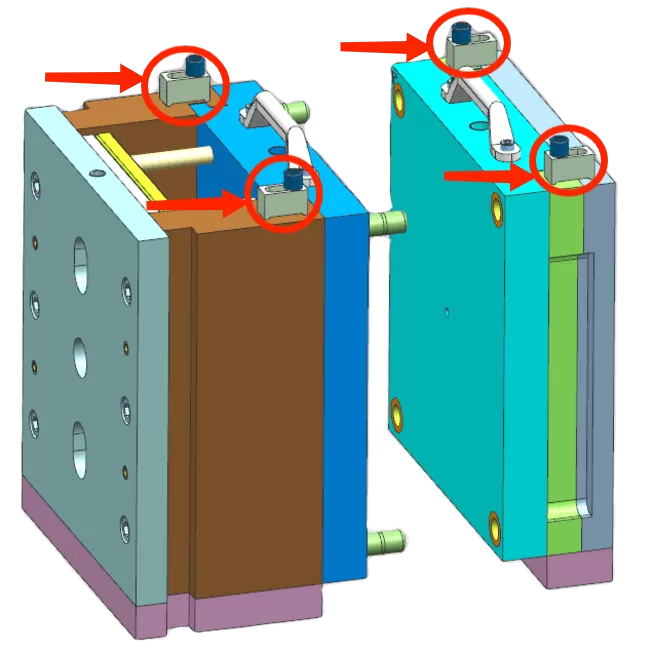

Cold Runner

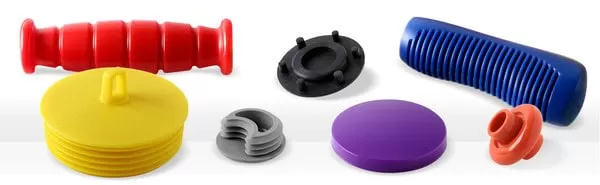

What Are the Applications of MUD Molds?

Typical applications of MUD injection molds center on scenarios requiring short product lifecycles, diverse styles, and moderate volumes where their strengths in fast mold swapping, cost reduction, and flexibility shine:

Consumer Electronics

Think headphone parts, charger housings, or smartwatch buttons. These products iterate quickly (every 6–12 months), and MUD molds enable fast switches between models. One client swapped 3 types of charging port molds in 3 days just by changing inserts.

Medical Consumables

Small precision parts like syringe components, sample tubes, or IV connector fittings. They require strict tolerances (±0.01mm) and multi-batch production. MUD’s standardized base ensures consistent accuracy during swaps—one medical client maintained a 99.5% pass rate across 4 sample tube variants.

Automotive Small Parts

Sensor housings, clips, or interior plastic pieces, which often need to fit multiple vehicle models. MUD lets one production line handle 3–5 part types; a car parts maker used our double H-frame to produce two sensors simultaneously, boosting efficiency by 40%.

Smart Home Devices

Buttons for small appliances or remote control casings—styles vary, but single-model volumes are low. MUD’s cost-effective insert design cuts initial tooling investment by nearly 60% for clients launching multiple variants.

Frequently Asked Questions

What is the typical lifespan of MUD molds compared to traditional molds?webadmin2025-07-23T06:59:24+00:00

What is the typical lifespan of MUD molds compared to traditional molds?

From our experience building both types for over a decade, MUD molds offer comparable durability with smarter maintenance:

Base Frame: Our modular steel bases (precision-machined from S50C alloy) last 5-7 years with regular maintenance—just like traditional molds. The key difference? Only the inserts wear out, not the entire structure.
Inserts: Depending on material and usage, inserts typically endure 300,000-500,000 cycles before needing replacement. For example, a client molding PA66+30%GF automotive clips replaced inserts every 400,000 shots, while their traditional molds needed full rebuilds after 500,000.
Cost-Effective Renewal: When inserts wear, you replace only the $3,000-$8,000 insert, not the $25,000+ base. This extends the system’s effective lifespan by 2-3x compared to fully discarding traditional molds.

Real-world example: A medical device manufacturer switched to our MUD system for syringe components. After 2 years, they’ve replaced inserts twice (costing $12,000 total) instead of investing $80,000 in new traditional molds. Their original base frame is still in service, with no signs of wear.

Our advantage: We design inserts with interchangeable wear zones (e.g., sprue bushings, ejector pins) that can be replaced separately, further extending insert life by 20-30%.

What maintenance is required for MUD molds?webadmin2025-07-23T07:12:01+00:00

What maintenance is required for MUD molds?

You can think of MUD as a traditional mold dividing into several replaceable parts. Therefore, there are some common maintenance and cleaning measures, such as:

Regular cleaning: Both require resin residue removal from cavities and runners (we use ultrasonic cleaning for inserts, same as full molds).
Wear part replacement: Ejector pins, springs, and sprue bushings wear over time and need periodic swapping, regardless of mold type.
Corrosion prevention: All steel components (frames, inserts) need anti-rust treatment (e.g., oiling) to resist moisture, especially in humid production environments.

However, due to the differences in inserts and other structures, we also need to implement some special management measures.

Precision alignment checks for the base frame
The reusable base’s guide pins and clamping slots are critical for fast changeovers. Every 3 months, we recommend calibrating these with a dial indicator to ensure ±0.005mm tolerance—this prevents misalignment when swapping inserts. Traditional molds don’t need this, as their one-piece design avoids frequent component changes.
Insert-specific upkeep (off-machine, no production halt)
Unlike traditional molds (which require full removal for repairs), MUD inserts can be serviced offline:
- After 100,000 cycles, inspect insert-to-frame seals (O-rings for cooling lines) to avoid leaks—these are easy to replace without disassembling the entire mold.
- For high-volume runs, keep backup inserts polished and ready—swap them in 5 minutes while the worn insert is repaired, keeping production running.
Quick-release clamp maintenance
The clamps that secure inserts to the base need monthly lubrication (we supply a food-grade grease for medical/consumer goods clients) to ensure fast, secure locking. Traditional molds use fixed bolts, so this step is unnecessary.

Our team provides a custom maintenance checklist with every order, tailored to your production volume (e.g., daily vs. weekly steps for 10k vs. 100k cycles). This keeps the system running at peak efficiency, with 90% of upkeep done offline while production continues.

How do MUD molds facilitate rapid prototyping?webadmin2025-04-14T06:11:12+00:00

How do MUD molds facilitate rapid prototyping?

MUD molds are designed for quick assembly and modification, allowing for fast production of prototypes. The modular design enables easy changes to mold inserts without requiring extensive retooling, making it possible to iterate designs swiftly and efficiently test new concepts in real production materials.

How can I get support or assistance with my MUD Injection Mold projects?webadmin2025-07-23T08:04:12+00:00

How can I get support or assistance with my MUD Injection Mold projects?

Our team is available to provide assistance throughout the entire process, from initial design to production. For more information about our one-stop manufacturing capability, you can refer to this page to learn how to turn your idea into a product.

For project details, please contact our customer support or consult with our technical specialists for tailored guidance regarding your specific project needs at sales@kingstarmold.com.

What Should I Consider When Choosing MUD Injection Molds for My Project?webadmin2025-07-23T07:33:37+00:00

What Should I Consider When Choosing MUD Injection Molds for My Project?

Selecting MUD injection molds isn’t just about technical specs—it’s about aligning the system with your production reality. After 15+ years building these molds for clients in automotive, medical, and electronics, we’ve learned that the most critical factors boil down to how well the modular design solves your unique pain points. Here’s what matters most, based on real-world projects:

1. Your Production Volume & Frequency of Design Changes

This is the make-or-break factor. MUD molds shine where traditional molds struggle—but only if your needs match their strengths.

Low-to-mid volume (10k–500k units) with frequent design tweaks: A client making smartwatch charging ports switches designs 3–4 times a year. With our MUD system, they swap inserts instead of rebuilding molds, cutting downtime by 80% compared to their old process. For them, the reusable frame paid for itself in 3 months.

High-volume runs (>500k units) with stable designs: MUD works here too, but focus on our reinforced H-frames. A automotive supplier running 1M+ sensor housings yearly uses our Double H-frame to run 4 identical inserts, doubling output without sacrificing precision.

Our tip: If you change part designs more than twice a year, MUD will save you 30–50% in long-term tooling costs. For one-off, high-volume parts, traditional molds might still make sense—but we’ll always audit your needs first.

2. Part Complexity & Material Compatibility

MUD’s modularity has limits—knowing them upfront avoids headaches.

Part features: Simple geometries (e.g., small connectors) are a no-brainer. For complex parts with undercuts or multi-cavity designs, we customize inserts with cam actions or stripper plates. A medical client needed a syringe barrel with a threaded neck; we added a rotating insert to the MUD frame, achieving the same precision as a custom mold at 40% lower cost.

Materials: We’ve tested MUD inserts with everything from standard PP to abrasive glass-filled PA66. For high-wear materials (like 30% Glass-Fiber Reinforced PBT), we use H13 steel inserts (instead of standard 420 stainless) to extend lifespan by 2–3x.

3. Cost Structure: Upfront vs. Long-Term Savings

Don’t fixate on initial prices—look at the total cost of ownership.

Upfront investment: Our MUD frames cost ~30% more than a single traditional mold, but each new insert is 50–70% cheaper than a full mold. A consumer electronics client making 5 variants of a USB-C housing spent 12k on the frame+3k/insert (total 27k) vs. 15k per traditional mold (total $75k).

Hidden savings: Faster changeovers (5 mins vs. 2+ hours) cut labor costs. One client running 3 shifts saved 120+ production hours yearly—equivalent to $48k in lost output avoided.

4. In-House Capabilities & Maintenance

MUD’s efficiency relies on your team’s ability to leverage its modularity.

Changeover skills: Our clients with the best results train operators on the quick-release clamps (we included a 15-minute video tutorial). A small workshop once struggled with misalignment until we sent a technician to demonstrate—now their team swaps inserts in 4 minutes flat.

Maintenance needs: Inserts are lighter (15–20kg) than full molds, so cleaning and repairs happen offline. We recommend a weekly check of the frame’s cooling line O-rings (a 5 part that prevents 1k+ in leaks).

5. (Less Critical but Still Worth Checking)

Supplier support: We provide a 24-hour hotline for urgent issues—last month, a client’s insert cracked at 2 AM, and we shipped a backup by noon.

Future scalability: Our frames fit standard injection presses (100–500 tons), so upgrading your machine won’t require a new frame.

The bottom line? MUD molds thrive when you need flexibility, cost control, and speed. We start every project with a free audit: share your part drawings, production volume, and pain points, and we’ll tell you if MUD is the right fit—no sales pressure. After all, we’ve seen too many clients waste money on MUD when a traditional mold would work better.

How quickly can I produce prototypes using MUD molds?webadmin2025-07-23T07:38:05+00:00

How quickly can I produce prototypes using MUD molds?

Prototyping with MUD molds is much faster than traditional tooling. Since the base frame is pre-made, we only need to craft the custom insert.

For simple parts (like basic housings), inserts take 3–5 days.

Complex designs (with undercuts or textures) take 7–10 days.

And once approved, scaling to production is seamless using the same base.

Help You Turn An Idea Into A Product

Popular Plastic Injection Molding Materials

MUD Injection Mold Building

What is MUD Injection Mold?

Our MUD Injection Mold Types

E-Frame

U-Frame

T-Frame

H-Frame

Double H-Frame

MUD Mold Materials

Why Choose MUD Injection Molds

Faster Turnaround & Lower Costs

Lightning-Fast Changeovers

Flexible Production

Simpler Storage & Maintenance

Details of MUD Frame Types

U-Frame & T-Frame

H-Frame & Double H-Frame

E-Frame

MUD Mold Insert Types

Standard Insert

T-style Insert

U-style Insert

MUD® Quick-Change eBook

MUD Components

MUD Quick-Change Mold Base Adapter

MUD Waterline Purge System

Start Your Project with a Click

MUD Quick-Change Prototype Adapter

How We Work

Get Your Request

Confirm DFM Report

Mold Deisgn

Injection Mold Manufacturing

Mold Final Acceptance

Mold Assembly & Testing

Get Craft with Precision Now

Workflow of Changing MUD Mold Insert

Hot Runner

Cold Runner

What Are the Applications of MUD Molds?

Consumer Electronics

Medical Consumables

Automotive Small Parts

Smart Home Devices

Frequently Asked Questions

What is the typical lifespan of MUD molds compared to traditional molds?

What maintenance is required for MUD molds?

How do MUD molds facilitate rapid prototyping?

How can I get support or assistance with my MUD Injection Mold projects?

What Should I Consider When Choosing MUD Injection Molds for My Project?

How quickly can I produce prototypes using MUD molds?
