In the field of engineering plastics, PPSU (polyphenylsulfone) has become a “popular material” in the high-end manufacturing industry due to its outstanding comprehensive performance. Many people may ask: Can PPSU be processed through injection molding technology? The answer is yes – as long as equipped with appropriate equipment and precise process control, PPSU can efficiently and precisely achieve injection molding, which is widely used in multiple high demand industries.

1. PPSU Injection Molding

Let’s take a brief look at PPSU: It is a special engineering plastic that can be injection molded. Its core advantages lie in its high temperature resistance, corrosion resistance to chemicals, as well as its strong toughness, dimensional stability, and impact resistance. It can easily withstand harsh environmental tests such as steam sterilization and hot water containing detergents. In addition, PPSU has various specifications such as filling grade and reinforcement grade, which are suitable for different scene needs. Its injection molding resin also has multiple well-known product names, such as Radel®, Ultrason®, TECASON® and Sultron®.

The injection molding process of PPSU is not complicated. The core principle is to feed the dried PPSU pellets into the material cylinder of the injection molding machine, melt them into a flowing dynamic melt through gradient heating, and then inject the melt into a customized mold cavity with high pressure. After cooling and solidification, the finished product with the same shape as the cavity can be obtained.

The biggest advantage of this processing method is efficient batch production, which can quickly and economically produce high-quality and consistent components. It can process simple flat and shell products, as well as accurately shape precision structural parts with complex patterns and small apertures, without the need for additional complex secondary processing, greatly improving production efficiency.

2. Core Advantages of PPSU Injection Molding

Injection molded PPSU can retain its excellent performance to the greatest extent possible, and its specific advantages can be summarized into six points:

  • High Temperature Resistance: Its continuous use temperature can reach up to 260℃. Even if it is exposed to high temperature environments such as hot water and steam for a long time, its performance will not be affected, and its size can remain stable. It is very suitable for use scenarios that require high temperature resistance.
  • Chemical Resistance: It has good corrosion resistance to various chemicals, such as strong corrosive disinfectants and cleaning agents commonly used in medical settings, which it can easily withstand. This is something that most general-purpose plastics cannot match.
  • Dimensional Stability: Whether in contact with moisture or encountering fluctuating temperatures, the PPSU components after injection molding can firmly maintain their original size and shape, and are not prone to deformation problems.
  • Impact Resistance: It has excellent toughness and high durability, which can effectively resist external mechanical stress. If there are strict requirements for the strength of components, it is definitely the right choice.
  • Biocompatibility: It can be repeatedly sterilized without significant degradation after treatment, which is also the key reason why it can be widely used in the medical and health fields.
  • Electrical Insulation: It has excellent electrical insulation effect and is a very suitable choice for making electrical components such as electronic connector housings.
PPSU injection molding parts

3. Challenges in PPSU Injection Molding

Although PPSU can achieve injection molding, due to its own chemical properties, there are still two core challenges in the processing process that need to be focused on:

  • High Cost: As a special plastic, PPSU’s raw material prices are much higher than engineering thermoplastic plastics such as ABS and nylon, and it requires higher equipment and processes, which will further increase production costs. Therefore, it is necessary to strike a balance between material costs and application requirements.
  • High Processing Difficulty: PPSU has a high melting point (218-220℃), high viscosity and poor flowability after melting This requires specialized injection molding equipment and precise temperature control (barrel temperature 355℃ to 375℃, mold temperature 138℃ to 160℃); At the same time, its process window is relatively narrow. And small fluctuations in parameters such as injection pressure and screw speed may cause defects such as shrinkage marks and warpage in the finished product. Special additives can be added to improve moldability.

In addition, if the process control of PPSU is improper, there may be a decrease in impact strength, which needs to be improved by optimizing the process or adding additives. Long term exposure to ultraviolet light can cause aging and discoloration, and outdoor applications require additional anti ultraviolet treatment.

4. Primary Application Areas of PPSU Injection Molding

With excellent comprehensive performance and convenient injection molding processing, PPSU’s applications cover multiple high-end fields, mainly including:

  • Medical Field: medical devices, dental components, surgical instruments, etc. (can withstand repeated sterilization);
  • Childcare Field: baby bottles that do not contain bisphenol A (BPA);
  • Automotive Field: various automotive components (suitable for high temperature environments such as engine compartments);
  • Electronic Field: electronic connector housings, electrical components, etc;
  • Other Fields: home appliance components, hot water system pipeline components, etc.

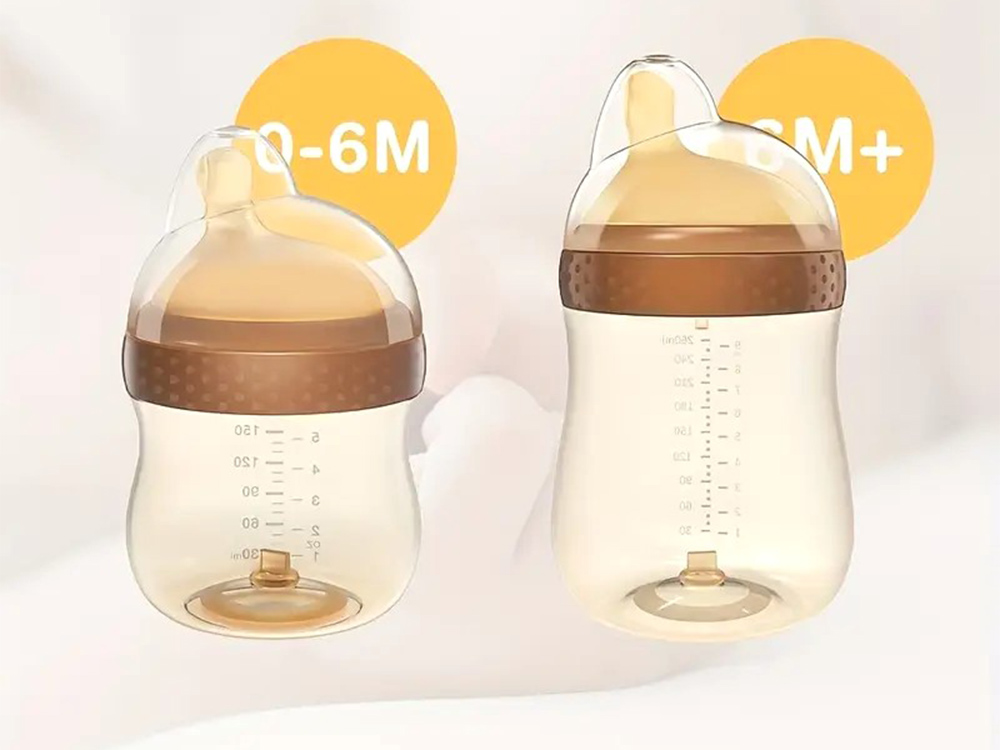

High Temperature Resistant PPSU Material Bottle

Conclusion

PPSU can be processed through injection molding, and injection molding is the core way to achieve its large-scale and precision production. At the same time, as long as specialized equipment is equipped and process parameters are accurately controlled, the challenges of high processing difficulty and cost can be effectively solved, fully realizing its performance value.

If you are considering using PPSU in injection molding projects or sourcing custom PPSU plastic parts, you are at the right place. KingStar is a leading injection molding company in China and has rich experience in making custom plastic parts. Contact us at sales@kingstarmold.com for technical support. We will reply to you within 24 hours.
